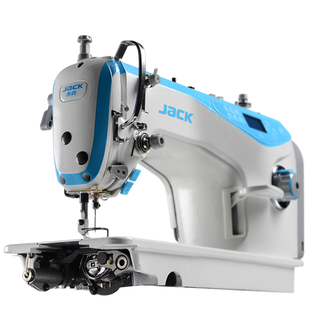

Jack A2-CZ Direct Drive Lockstitch (UBT)

Modern 1-needle lockstitch machine with automatic thread trimmer and needle positioning. Equipped with an energy-saving motor mounted in the head (Direct Drive), which guarantees quiet and reliable operation and lower power consumption. JACK Lockstitch A2 is equipped also in integrated LED illumination. The machine is dedicated for sewing light and medium materials (A2) and heavier (A2-H).

The automatic thread cutting function increases work efficiency by reducing production costs.

The machine is equipped with an easy-to-read control panel with speed control, needle positioning, an automatic cutting switch and a “Reset” button to restore factory settings.

The machine is equipped with adjustable 3-degree illumination of the working field to improve the comfort of use.

The special motor cooling design ensures efficient heat dissipation and a longer machine life.

Modern motors used in Jack machines ensure lower energy consumption, significantly reducing production costs

Suitable for all material types.

Complete with a unit stand, with the added benefit of wheels (to help with moving if required) this is a great lockstitch machine that will cope with all kinds of materials such as silk, satin, stretch, curtains, denim, leather and more.

Features:

Built in LED Light (3 Brightness Levels)
Digital Display (For Programming)

Speed Adjustment
Direct Drive
Silent Running
Variable Speed

Automatic Thread Trimmer (UBT)
Needle Positioning Function
1 Stitch Button (Forward & Backwards)
Lockstitch
Straight Stitch
Working Pressure Adjustment
Adjustable Stitch Length
Reverse Lever (Back Tack)
Hand Lever
Knee Lever
Built In Bobbin Winder
Self Oiling (Oil Reservoir)
Cooling Fan (Reduces Motor Burning)

Specification:
Weight (45kg)

Max Sewing Speed (4500 spm)
Maximum Stitch Length (5mm)
Presser Foot Lift (5mm by hand/13mm by knee)
Needle Bar Stroke (31mm)

Needle System (DBx1/16x231)

Single Phase (240v)

Accessories Included:
Needles
Bobbins
Manual
Soft Cover
Screwdriver
Spanner
Oil
