Brother BAS-311HX-05A Programmable Heavy Duty Pattern Industrial Sewing Machine

Brother BAS-311HX-05A Programmable Heavy Duty Pattern Sewing Machine

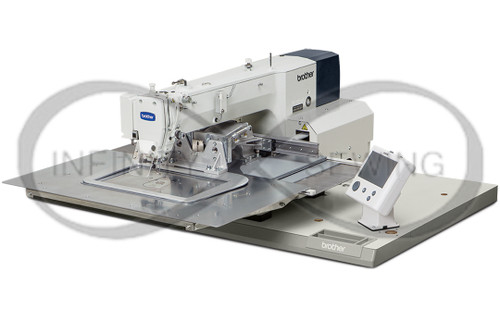

The Brother BAS-311HX-05A is a top-tier direct drive programmable electronic pattern sewer with a cylinder bed. It offers exceptional performance with the world's top-class sewing speed of 2,800 stitches per minute, ensuring high-quality sewing with superior needle penetration and energy efficiency. This machine is designed for heavy materials and is equipped with advanced features to enhance user experience and productivity.

Key Features:

• World's Top-Class Sewing Speed: Achieves 2,800 stitches per minute with precise stitch points, delivering beautiful and stable thread tightening.
• Digital Tension and Thread Breakage Detector: Ensures stable stitching without relying on individual feel. Automatically stops operation and alerts the operator if thread breakage occurs.
• Great Needle Penetration: The powerful 550W motor provides strong needle penetration even at slow speeds. Vibration control automatically adjusts penetration force based on resistance.
• High Energy Saving: The most energy-efficient programmable electronic pattern sewing machine in its class, offering high-speed sewing and strong needle penetration.
• Uniform and Stable Thread Tightness: Prevents excessive or insufficient pressing by the stepping foot, ensuring a uniform finish.
• Simple Adjustment: The driver can be adjusted from the side without tilting the machine, reducing adjustment time and improving productivity.
• Easy Sewing Pattern Change: Quick replacement of the work clamp and feed plate by loosening a few screws.
• User-Friendly LCD Touch Panel: The 7-inch screen with easy programming functions allows intuitive operation without needing an instruction manual.
• Comprehensive Program Features: Includes program creation, selection, memory switch settings, file selection, manual display, and error message display.
• Multimedia Support: Compatible with SD cards, USB ports, and an expansion port for additional devices like barcode readers.

Technical Specifications:

• Model: Brother BAS-311HX-05A
• Application: Heavy Materials
• Stitch Form: Single needle lock stitch
• Max. Sewing Speed: 2,800 stitches per minute
• Max. Sewing Area: 150x100mm
• Feed Mechanism: Intermittent feed (pulse motor drive)
• Stitch Length: 0.05-12.7mm (per 0.05mm)
• Max. Number of Stitches: 20,000 stitches (per program)
• Max. Number of Programs: 999
• Work Clamp Drive: Pneumatic drive
• Work Clamp Lift Amount: Max. 30.0mm
• 2-Step Work Clamp: Separate-type
• Height of Stepping Presser Foot: 22.0mm
• Stepping Presser Foot Stroke: 2.0mm-4.5mm, 4.5mm-10.0mm, or 0.0mm (Default setting: 3.0mm)
• Hook: Double-capacity shuttle hook
• Thread Wiper: Included
• Thread Trimmer: Included
• Digital Tension: Included
• Thread Breakage Detector: Included
• Data Storage Media: Internal flash memory (data addition available with external memory)
• Motor: AC servo motor 550W
• Weight: Machine head: 88kg; Control box: 9kg
• Power: Single phase: 100V/200V; 3-phase: 200V/220V/380V/400V
• Air Pressure/Consumption: 0.5MPa 1.8l/min
