Brother S-7250A-703 Standard Version Medium Weight Lockstitch Industrial Sewing Machine

Brother S-7250A-703 Nexio Single Needle Direct Drive Lockstitch Machine with Electronic Feeding System and Thread Trimmer

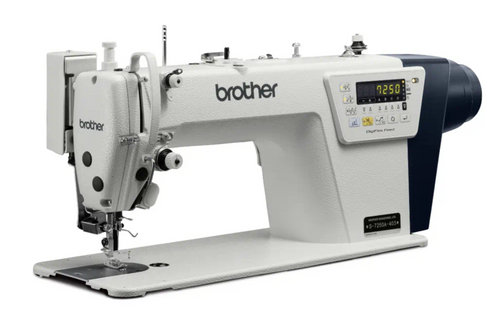

The Brother S-7250A-703 Nexio is a state-of-the-art single needle direct drive lockstitch machine designed for medium-weight materials. Equipped with an electronic feeding system and thread trimmer, this machine significantly reduces needle breakage, puckering, and material slippage through its advanced DigiFlex Feed (DFF) technology. The sealed oil pan design eliminates oil stains, while IoT integration enhances productivity management.

Key Features:

• DigiFlex Feed Technology: World’s first electronic feed control directly connected with a stepping motor, offering digitalized feeding and resolving various sewing issues without the need for adjustments.
• Needle Breakage Prevention: Optimized fabric feed timing, stepping motor control, and automatic sensing of needle position during reverse sewing prevent needle breakage.
• Oil Staining Prevention: The closed oil tank and minimum lubrication system ensure clean sewing, drastically reducing oil leakage and scattering.
• User-Friendly Operation Panel: Easy-to-use panel allows for quick adjustments of stitch length and sewing speed, enhancing sewing reproducibility.
• Stress Relief During Reverse Sewing: Motor control reduces vibration and noise, contributing to a more comfortable sewing experience.
• Reduction of Hanging Fabric: Rubber arrangements on the machine bed facilitate easier handling of fabrics.
• IoT Integration: Enables visualization and analysis of sewing machine data for improved productivity and maintenance.
• USB Data Management: Easy data transfer and software upgrades via USB memory.

Technical Specifications:

• Model: Brother S-7250A-703
• Lubrication Type: Minimum lubrication
• Application: Medium materials
• Max. Sewing Speed: 5,000 sti/min
• Max. Backtacking Speed: 3,000 sti/min
• Max. Stitch Length: 5mm
• Thread Trimming Mechanism: Single action trimming mechanism (ordinary type)
• Presser Foot Height: Presser bar lifter: 6mm, Knee lifter: 16mm
• Needle Bar Stroke: 31mm
• Needle (DBx1 / DPx5): #11-#18 (Nm75-110)
• Feed Dog Height: 0.8mm
• Weight: 35kg
• Motor: AC servo motor
• Power: 100-110V(*2), 200V-230V, 380V-400V(*2) under 450VA
