Brother Z-8550B-031 Direct Drive Zigzag No Trimmer Industrial Sewing Machine

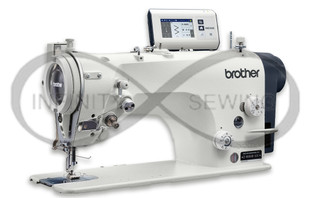

Brother Z-8550B-031 Electronic Direct Drive Zigzag Lock Stitcher

User-Intuitive Color LCD Display Touch Panel

• Enhances productivity with IoT capabilities.
• High sewing quality achieved through electronic control.

Clean Sewing

• Equipped with a sealed oil tank supplying constant clean oil only to the rotary hook.
• No oil around the needle bar and thread take-up mechanism, preventing oil stains.
• Direct drive system eliminates belt shaving, keeping products clean.

Versatile Sewing Patterns

• Built-in plain zigzag, 3-step zigzag, scallop patterns, and T-stitches.
• 8 types and 14 sewing patterns included, eliminating the need for multiple cams and enhancing cost performance.

Custom Sewing Patterns

• Allows storing of original sewing patterns for various applications such as decorative stitching on ladies' wear, knitted articles, neckerchiefs, towel handkerchiefs, foundation garments, and swimwear.
• Data handling is made easy with CF cards.
• Supports up to 99 patterns with a total of 49,500 stitches.
• Sewing patterns can be created at the operation panel or using the optional PS-300B sewing data programming software.

Precision at High Speeds

• Electronic zigzag stitchers ensure the needle moves perpendicular to the material, preventing needle deflection even at high speeds.
• Pulse motor with servo control for the zigzag mechanism prevents position slippage.

Technical Specifications

• Model: Brother Z-8550B-031
• Direct Drive: Yes
• Thread Trimmer: No
• Backtack / Condensed Stitch Device: No
• Upper Thread Feeding Device: No
• Max. Zigzag Width: 10.0mm
• Application: Light to medium materials
• Presser Foot Height: Manual: 6.0mm, Knee: 10.0mm
• Needle Bar Stroke: 33mm
• Max. Sewing Speed: 5,000 sti/min
• Max. Feed Amount: 4.0mm
• Sewing Pattern: 8 types, 14 patterns built-in
• Height of Feed Dog: 1.0mm
• Presser Foot Pressure: 10-35N
• Needle: Schmetz 134SUKNm70/10
• Weight: Machine head: 49kg, Control box: 8kg
• Arm Pocket Size: Width: 300.0mm, Height: 121.5mm
• Arm Bed Size: 517.5x178.0mm
• Motor: AC servo motor (450W)
• Power: Single-phase, 3-phase: 200V - 230V
• Max. Electric Power Consumption: 400VA
