Global WF 1335 DD Direct Drive Cylinder Arm Walking Foot Needle Feed Series

Global WF 1335 DD Series

DIRECT DRIVE CYLINDER ARM, WALKING FOOT MACHINES

The product specifications for the 1335 DD series:

• Machine speed: max 2400 spm
• Oiling system: manual
• Feed type: drop feed, needle feed walking foot
• Stitch length: max 6 mm
• Presser foot lift: by hand max 5 mm, by pedal max 14 mm
• Presser foot lifter: optional (pneumatic)
• Needle type: 134×35

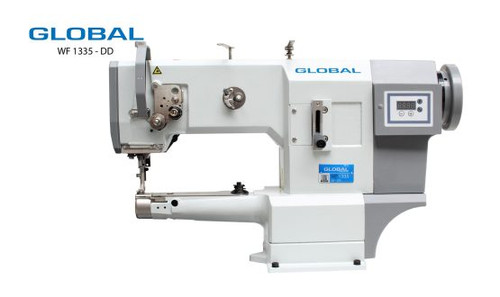

WF 1335 DD
– Single needle, cylinder arm, walking foot machine with a direct drive motor and integrated control box. This economical machine s good quality machine used to sew regular work on all kinds of medium to heavy materials. Stitch length up to 6 mm. (pneumatic presser foot lift is an option)

WF 1335 B-DD
– Same as WF 1335 DD, but equipped for binding work (binder not included).

WF 1335 LH-DD
– Same as WF 1335DD , but equipped with large capacity hook.

WF 1335 B-LH-DD
– Same as WF 1335 B-DD, but equipped with large capacity hook.

WF 1335 LH-AUT-DD
– Same as WF 1335 LH-DD, however equipped with electric thread trimmer, electric presser foot lifter and back tack.

WF 1335 B-LH-AUT-DD
-Same as WF 1335 LH-AUT-DD, however for binding work (binder not included).
