Global ZZ 1560 High Speed Zig Zag Series

Global ZZ 1560 Series

HIGH SPEED ZIG-ZAG MACHINES

The product specifications for the High Speed ZZ 1560:

• Machine speed:
  ZZ 1565: max 5000 spm
  ZZ 1566: max 4400 spm
  ZZ 1568: max 3400 spm
• Oiling system: semi automatic
• Feed type: drop feed
• Hook type: ZZ 1565; standard, ZZ 1566 / 1568; large hook
• Stitch length: max 5 mm
• Presser foot lift: 12 mm
• Needle type: 134 R
• Zig-zag width; ZZ 1565; max 6mm, ZZ 1566 / 1568; max 10 mm
• Optional extras: presser foot lift & back tack (all pneumatic or electric)

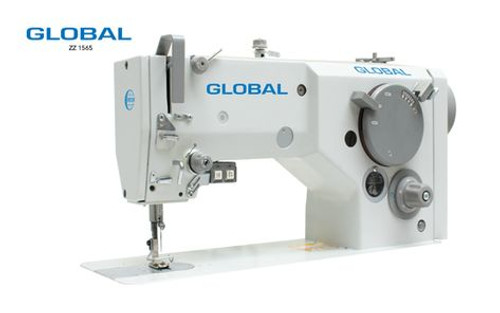

ZZ 1565

– High speed 6 mm flatbed zig zag sewing machine with semi automatic lubrication, built-in bobbin winder.

ZZ 1565 AUT

– Same as ZZ1565, but equipped with automatic thread trimmer, back tack and presser foot lifter (all electric).

ZZ 1566

– Same as ZZ 1565, however with maximum 10 mm zig-zag width.

ZZ 1566 AUT

– Same as ZZ 1566, but equipped with automatic thread trimmer, back tack and presser foot lifter (all electric).

ZZ 1568

– Same as ZZ 1566, but used for medium heavy materials.

ZZ 1568 AUT

– Same as ZZ 1568, but equipped with automatic thread trimmer, back tack and presser foot lifter (all electric).
