GROZ BECKERT 135X17 SAN 5 GEBEDUR SIZE 120/19 INDUSTRIAL SEWING MACHINE NEEDLES

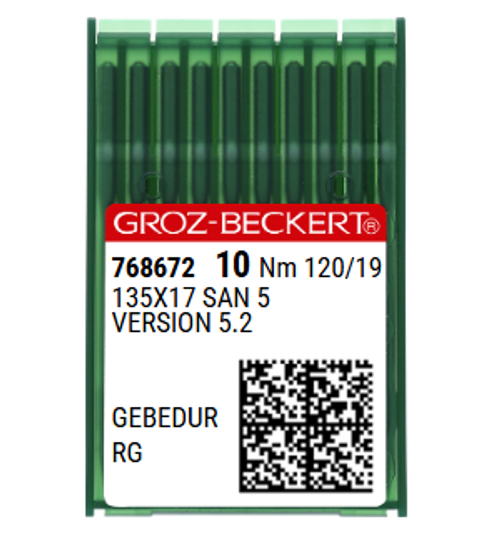

Groz Beckert 135x17 SAN 5 GEBEDUR Size 120 / NM 120 / Size 19 Industrial Sewing Machine Needles – Pack of 10
Point Type: RG (Normal round point with small ball)
Compatible Systems: VERSION 5.2, 135x17 SAN 5, 37:20

Designed for high-performance stitching on technical textiles and advanced fabric blends, the Groz Beckert 135x17 SAN™ 5 GEBEDUR Size 120 (NM 120 / Size 19) industrial sewing needles combine cutting-edge geometry with extreme durability. These needles feature Groz Beckert’s GEBEDUR™ titanium nitride coating, which increases hardness and wear resistance in the most stress-prone areas: the point and eye.

Equipped with the SAN™ 5.2 geometry, these needles offer a reinforced blade for maximum stability, an enlarged eye for thicker threads, and a double point groove that improves thread handling in both linear and multidirectional sewing. The slightly rounded RG point makes them perfect for chainstitch, embroidery, and button sewing on knitted, woven, microfiber, and coated materials — including technical fabrics like airbags, tents, seatbelts, foils, and canvas.

Key Features:

• GEBEDUR™ Titanium Coating – Exceptional resistance to wear in demanding industrial environments.

• SAN™ 5.2 Special Application Design – Reinforced blade, enlarged eye, scarf chamfers, and dual point grooves for heavy-duty and complex material handling.

• RG Point (Normal Round with Small Ball) – Slightly rounded to protect delicate and knit fabrics while offering clean penetration in tough textiles.

• Perfect for Technical Textiles – Optimised for materials like plastic foils, nets, airbags, canvas covers, and synthetic welts.

• Supports Chainstitch and Embroidery – Ideal for single/multihead embroidery, button sewing, and multi-directional stitching.

Technical Specifications:

• Needle System: 135x17 SAN 5 / VERSION 5.2 / 37:20

• Needle Size: NM 120 / Size 19

• Point Type: RG – Normal round point with small ball (STU, STUB, S BALL, SET RT, H SET, etc.)

• Coating: GEBEDUR™ Titanium Nitride

• Shank Diameter: 2 mm

• Overall Length: 43.7 mm

• Length to Eye: 38.9 mm

• Needle Form: Straight with single groove and scarf

• Stitch Type: Class 300 – Double lockstitch

• Recommended For: Technical textiles, woven fabrics, coated fabrics, microfiber

• Examples of Use: Seat belts, airbags, tents, canvas, outdoor covers, foils, nets, thick synthetic seams, button sewing, embroidery

Why Choose Groz Beckert SAN™ 5 GEBEDUR Needles?

Groz Beckert 135x17 SAN 5 GEBEDUR needles are a premium solution for technical and high-stress sewing. Built to reduce thread breaks, handle extreme materials, and extend operational uptime, these needles are trusted by manufacturers in the automotive, outdoor, upholstery, and textile industries worldwide.
