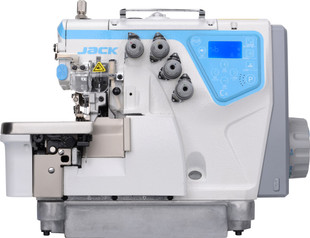

JACK C4-5-03/333 Super High-Speed 5-Thread Direct Drive Overlock Industrial Sewing Machine (20" Table) (Small Table)

THIS MACHINE COMES ON A 20" TABLE AND UNIT STAND FOR SMALL SPACES

Jack C4-5-03/333 High-Speed Automatic 5-Thread Overlock Machine

The Jack C4-5-03/333 is an advanced overlock machine designed for high-speed sewing, featuring three versatile operating modes: manual, semi-automatic, and automatic. Its lubricated needle bar minimizes vibrations and noise, ensuring a smooth operation. This machine is equipped with photocells, a chain cutter, and an automatic foot lifter for enhanced efficiency.

Versatile Sewing Modes

• Automatic Mode: Operates through sensors, eliminating the need for a pedal.
• Semi-Automatic Mode: Combines an automatic presser foot lifter with an automatic chain cutter.
• Manual Mode: Allows users to select functions directly from the control panel.

Effective Oil Control

The sealed oil pickup system and lubricated needle bar prevent oil leaks, maintaining a clean workspace.

Voice Guidance

The integrated voice guide assists users in navigating functions and troubleshooting errors. A simple press of the VOICE button provides solutions and allows easy reset to initial settings.

Stable Single Motor Shaft

The single motor shaft design reduces torque, providing stable and reliable operation.

Exceptional Speed

Capable of reaching speeds up to 7,000 RPM, this machine operates 35% faster than standard models, enhancing productivity.

Automatic Photocells

Photocells enable automatic seam start and finish, activating the chain cutter and foot lifter effortlessly.

Adjustable Overedge

Easily adjustable overedge settings from 6mm to 10mm to accommodate various sewing needs.

Integrated Foot Lifter and Chain Cutter

The electronic presser foot lifter and chain cutter operate automatically at the end of each seam, streamlining the sewing process.

Technical Specifications

• Model: Jack C4-5-03/333
• Application: 3x5 Stitch
• Needle: DCx27
• Needle Size: #14
• Number of Needles: 2
• Number of Threads: 5
• Needle Distance: 3
• Stitch Width: 4 mm
• Stitch Length: 3.8 mm
• Differential Ratio: 0.7-2
• Presser Foot Lifting Height: 5 mm
• Max Speed: 7000 S.P.M
• Volume: 525x360x510 mm
• Weight: 33/41 kg
