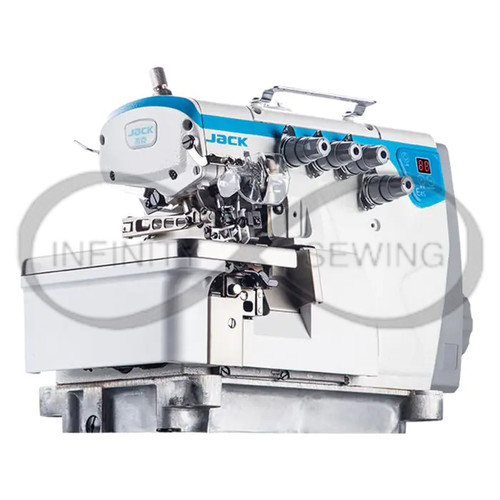

JACK E4S-5-03/333 5-Thread 3mm x 4mm Stitch Overlock Industrial Sewing Machine

Jack E4S-5-03/333 5-Thread Overlocker

The Jack E4S-5-03/333 is a cutting-edge 5-thread overlock machine, designed for optimal performance with an integrated energy-saving motor mounted directly on the main shaft (Direct Drive system). This innovative design ensures quiet operation, lower electricity consumption, and enhanced reliability. The machine's modern engineering promotes better ventilation, facilitating faster and more efficient operation, which contributes to a longer lifespan.

This model features an intuitive control panel for easy adjustments of sewing speed and needle positioning, with a quick return to factory settings. The integrated LED work field illumination ensures excellent visibility during sewing.

The new S model includes a convenient height adjustment for the feed dog, allowing for perfect stitching on a variety of material thicknesses.

L/M/H Selector Adjust the inclination of the feed dog using a lever to suit light, medium, or heavy-duty fabrics, ensuring versatility for diverse sewing tasks. (PATENTED)

Quick Response Experience improved efficiency with a response time reduction of 40-50% at both startup and stop, enabling faster sewing speeds and enhanced productivity.

Oil Return Constraint The enclosed needle bar mechanism, along with a dedicated lubrication tray, prevents oil spills, ensuring clean and precise seams.

One Key Reset Easily reset the machine, adjust LED lighting, and configure parameters through the user-friendly intelligent panel, which simplifies operation and learning.

Single Shaft Motor Designed for reduced torsion, the single shaft motor provides stability during operation, increasing sewing speed and durability.

Technical Specifications

• Model: Jack E4S-5-03/333
• Application: 3x4 Stitch
• Needle: B27
• Needle Size: #14
• Number of Needles: 2
• Number of Threads: 5
• Needle Distance: 3 mm
• Stitch Width: 4 mm
• Stitch Length: 4 mm
• Differential Ratio: 0.7-2
• Presser Foot Lifting Height: 5 mm
• Max Speed: 5500 s.p.m
• Volume: 525 x 360 x 510 mm
• Weight: 28/36 kg
