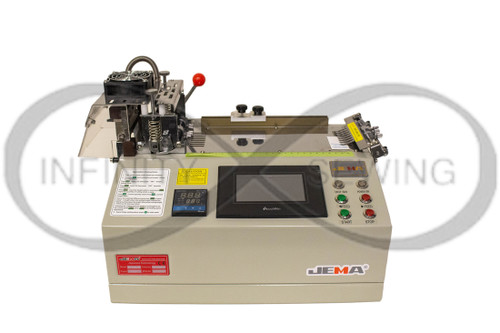

JEMA JM120LR Hot & Cold Strip Cutter

JEMA JM120LR Hot & Cold Strip Cutter

Automatic Hot and Cold Belt Loop Cutter

The JEMA JM120LR is designed to cut strip tapes automatically and neatly, offering precision and efficiency.

Applications:

The JM120LR is perfect for cutting belt loops, bag bands, shrink tubes, strings, elastic bands, and plastic zippers.

Precision Compensation and Maximum Width of 95mm

This cutter features an industry-unique accuracy of up to four digits for precision compensation. It reduces the range of controllable errors, resets automatically after each cut to prevent accumulative errors, and is equipped with a powerful cutter motor capable of cutting a variety of materials with different thicknesses. It is particularly suited for materials with a maximum width of 95mm, including thicker materials.

Special Features:

• High Speed: Capable of making 80-100 cuts per minute (at 50mm length).

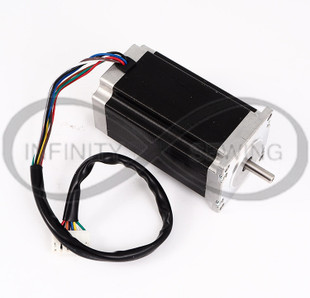

• Accuracy: Stepping motor ensures precise cut length.
• Cutting Type: Uses a hot knife for melting and cutting, resulting in neat edges without fraying. Includes an anti-static electricity device but is not recommended for heavy materials.
• Automatic Operation: Functions automatically with set length and quantity.
• Automatic Stopper: Halts operation automatically when materials run out.
• Memory Function: Retains set length, quantity, and speed even after power is turned off and on.

12 Month Return to Base Warranty

Technical Specifications:

• Model: JM-120LR
• Cutting Length (mm): 20-99999
• Max. Cutting Width (mm): 95
• Cutting Speed (pieces/min): 90
• Max. Blade Temperature (°C): 300
• Voltage (V): 110/220
• Frequency (Hz): 50/60
• Power (kW): 0.66
• Package Size LxWxH (mm): 560x420x405
• Weight (Kg): 24/29
