JUKI DDL-8700 SINGLE NEEDLE LOCKSTITCH STRAIGHT STITCH INDUSTRIAL SEWING MACHINE

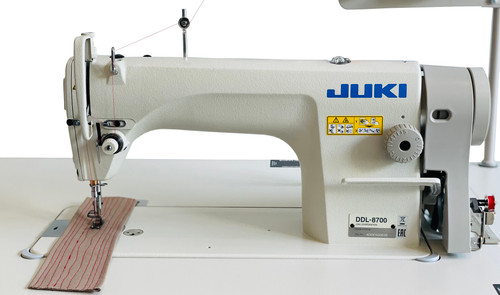

Juki DDL-8700 – Single Needle Industrial Lockstitch Machine (Head Only)

The Juki DDL-8700 is the industry-standard 1-needle, straight-stitch industrial lockstitch machine designed for medium-weight fabrics. Built for professional garment production, alterations, and tailoring, it delivers a high-speed performance of up to 5,500 stitches per minute, combining precision, durability, and operator comfort.

The optimally balanced, rigid machine head—designed using advanced 3D-CAD technology—offers low vibration and quiet operation for a smoother sewing experience. A spacious work area ensures easy fabric handling, even for larger garments.

Featuring low-tension sewing technology, the DDL-8700 adapts effortlessly to different fabric types, producing consistent, high-quality seams. It includes a presser foot lift of up to 13mm via the knee lifter, a light-touch stitch dial, and a throat plate with seam allowance guides for precision stitching.

The new SC-920C control box with energy-saving mode and the compact M92 servomotor help reduce power consumption by up to 25%, making this machine more efficient and eco-friendly.

Key Features

• Medium-Weight Sewing – Ideal for shirts, trousers, uniforms, and dresses.

• High-Speed Performance – Up to 5,500 stitches per minute for maximum productivity.

• Consistent Stitch Quality – Low-tension sewing mechanism for perfect seams.

• Low-Noise, Low-Vibration Operation – Comfortable for long sewing sessions.

• Generous Presser Foot Lift – 13mm lift with knee lifter for thicker seams.

• Precision Sewing – Stitch dial and seam allowance guides built in.

• Energy-Saving Technology – Reduced standby power consumption.

• Durable Build – Designed for continuous industrial use.

Technical Specifications

• Model: Juki DDL-8700

• Application: Medium-weight fabrics

• Max Sewing Speed: 5,500 sti/min*

• Max Stitch Length: 5mm

• Needle Bar Stroke: 30.7mm

• Presser Foot Lift: Hand – 5.5mm / Knee – 13mm

• Needle System: DB×1 (#14) – compatible with #9 to #18 (Nm90)

• Feed Dog: 4-row (3-row)

• Hook: Automatic-lubricating full-rotary hook

• Lubrication: Automatic

• Lubricating Oil: Juki New Defrix Oil No.1 (ISO VG7)

• Head Weight: 28kg\
