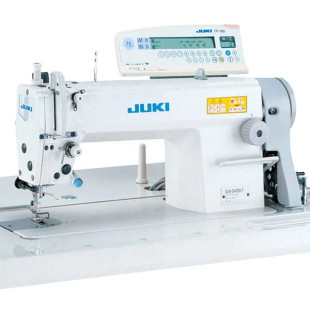

JUKI DLM-5200ND LOCKSTITCH VERTICAL EDGE TRIMMER (3.2MM)

Juki DLM-5200ND is a high-speed, 1-needle lockstitch machine with an integrated vertical edge trimmer. Designed for professional garment manufacturing, it ensures consistent seam quality while simultaneously trimming fabric edges for a clean, precise finish.

With a 3.2mm (1/8”) sub-gauge, sharp adjustable knife, and smooth material handling, this model is perfect for sewing shirts, blouses, and various apparel that require neat, uniform edges.

Key Features

• Integrated Vertical Edge Trimmer – Cuts excess material while sewing for faster, cleaner production.

• 3.2mm Sub-Gauge – Standard spacing between needle and knife for precise edge cutting.

• Sharp Adjustable Knife – Change cutting angle to suit different materials.

• Quick Change Stitching Mode – Easily switch between sewing with or without the knife.

• 5mm Max Stitch Length – Adjustable by dial for greater flexibility.

• Optimised Thread Path & Feed – Delivers smooth, consistent stitch quality.

• Arm-Shaped Machine Head – Improved operator comfort and easier material handling.

• Low Noise & Vibration – Enhanced working environment compared to older models.

• High-Speed Performance – Stable operation at up to 4,500 stitches per minute.

• Automatic Lubrication – Full-rotary hook ensures durability and smooth performance.

Technical Specifications

• Model: Juki DLM-5200ND

• Sub-Gauge: 3.2mm (1/8”) standard

• Max Sewing Speed: 4,500 sti/min

• Max Stitch Length: 5mm (forward & reverse)

• Needle Bar Stroke: 30.7mm

• Presser Foot Lift:

  • By hand: 4mm

  • By knee: 10mm

• Needle System: DB×1 (#14) / 134 (Nm90)

• Hook: Automatic-lubricating full-rotary hook

• Max Cutting Thickness: 4mm

• Lubrication: Automatic

• Oil Type: JUKI New Defrix Oil No.1 (ISO VG7)

• Head Weight: 30kg
