JUKI DLN-5410N-7 NEEDLE FEED LOCKSTITCH HEAD ONLY AUTOMATIC THREAD TRIMMER MEDIUM WEIGHT SEWING MACHINE
CONTACT US FOR A QUOTE
- Brand
- Juki
- SKU:
- JUKIDLN5410N7
- Condition:
- New

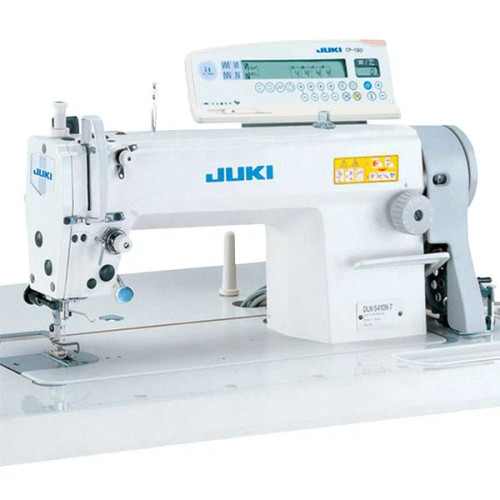

Juki DLN-5410N-7 Needle Feed Lockstitch Sewing Machine Head Only – Medium Weight, Automatic Thread Trimmer (UBT)
The Juki DLN-5410N-7 is a high-performance, needle-feed, single-needle lockstitch sewing machine head designed for precise, smooth sewing on light- to medium-weight fabrics. Featuring an integrated automatic thread trimmer (UBT), this industrial machine is ideal for professional garment manufacturing, tailoring, and textile production where consistent stitch quality and workflow efficiency matter most.
Key Features:
-
Automatic Thread Trimmer (UBT): Efficient thread trimming with a reliable, easily replaceable moving knife for simple maintenance and reduced downtime.
-
Advanced Needle Feed Mechanism: Prevents fabric slippage, uneven feeding, and puckering—even on challenging or slippery textiles.
-
Low-Tension Sewing & Adjustable Feed: Fine-tune needle feed amount (±15%) to match your material for beautiful, consistent seams every time.
-
Stable, Quiet Operation: Optimally balanced head and robust frame construction minimize vibration and noise, providing a smooth, comfortable sewing experience.
-
Industrial-Grade Durability: Reinforced feed and lubrication components, along with a hermetically sealed needle bar frame, boost longevity and reduce maintenance.
-
Energy-Saving Control Box: Equipped with the SC-920C control box and M92 compact servomotor, offering energy-saving mode to cut standby power consumption by up to 25%.
-
Customizable Operation Panel: Compatible with both CP-18A and CP-180A operation panels for production support and workflow tracking.
-
Ergonomic Operator Features: Light-pressure foot pedal and presser foot lift up to 13mm by knee, plus a machine arm shaped for easy fabric handling.
-
Automatic Lubrication: Full-rotary hook and critical components are automatically lubricated for smooth, reliable performance.
-
Automatic Reverse Feed: Standard feature for secure backtacking at the touch of a button.
Technical Specifications:
-
Model: Juki DLN-5410N-7
-
Application: Light- to medium-weight materials
-
Max Sewing Speed: 5,000 stitches per minute
-
Max Stitch Length: 4mm
-
Needle Bar Stroke: 30.7mm
-
Presser Foot Lift: By hand: 5.5mm | By knee: 13mm
-
Needle: DB×1 (#14), 134 (Nm90) for JE
-
Hook: Automatic-lubricating full-rotary hook
-
Lubrication: Automatic (JUKI New Defrix Oil No.1 / ISO VG7)
-
Automatic Reverse Feed: Provided as standard
-
Power Requirement: Single-phase 100–120V, 200–240V | 3-phase 200–240V
-
Power Consumption: 650VA
-
Total Weight: 83kg
