JUKI DLN-5410N NEEDLE FEED LOCKSTITCH SEWING MACHINE HEAD ONLY – MEDIUM WEIGHT, INDUSTRIAL
CONTACT US FOR A QUOTE
- Brand
- Juki
- SKU:
- JUKIDLN5410N
- Condition:
- New

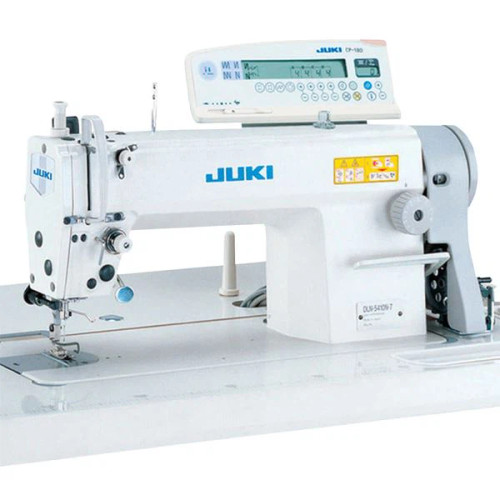

Juki DLN-5410N Needle Feed Lockstitch Sewing Machine Head Only – Precision for Medium Weight Materials
The Juki DLN-5410N is a high-quality, industrial needle-feed lockstitch machine head, expertly engineered for light- to medium-weight materials. Its advanced needle feed mechanism ensures smooth, even fabric feeding and exceptional stitch quality—making it ideal for garment manufacturing, tailoring, and textile production.
Key Features:
-
Advanced Needle Feed Mechanism: The needle-feed system virtually eliminates fabric slippage, uneven feeding, and puckering—even on challenging or slippery materials.
-
Precision Stitching: With low-tension sewing capabilities and adjustable needle feed amount (±15%), this model delivers perfectly balanced, consistent seams.
-
Reduced Vibration & Noise: An optimally balanced machine head and robust frame minimize vibration and noise, ensuring stable, comfortable operation.
-
Built for Durability: Reinforced feed, lubrication, and frame components, plus a hermetically sealed needle bar frame, enhance reliability and extend machine life.
-
Energy-Efficient Performance: The SC-920C control box and M92 compact servomotor introduce advanced energy-saving features—cutting standby power usage by up to 25%.
-
Customizable Operation Panel: Compatible with CP-18A and CP-180A panels, each providing production support functions for process optimization.
-
Operator Comfort: Light-touch foot pedal and presser foot lift up to 13mm by knee reduce fatigue and improve workflow, even with bulky materials.
-
Automatic Lubrication: An automatic, full-rotary hook lubrication system ensures smooth, low-maintenance operation.
Technical Specifications:
-
Model: Juki DLN-5410N
-
Application: Light- to medium-weight materials
-
Max Sewing Speed: 5,000 stitches per minute
-
Max Stitch Length: 4mm
-
Needle Bar Stroke: 30.7mm
-
Presser Foot Lift: By hand: 5.5mm | By knee: 13mm
-
Needle: DB×1 (#14), 134 (Nm90) for JE
-
Hook: Automatic-lubricating full-rotary hook
-
Lubrication: Automatic (JUKI New Defrix Oil No.1 / ISO VG7)
