JUKI DLN-5410NH NEEDLE FEED LOCKSTITCH SEWING MACHINE HEAD ONLY MEDIUM TO HEAVY WEIGHT INDUSTRIAL
CONTACT US FOR A QUOTE
- Brand
- Juki
- SKU:
- JUKIDLN5410NH
- Condition:
- New

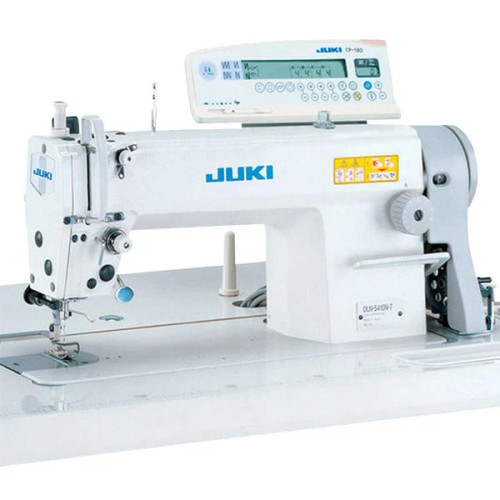

Juki DLN-5410NH Needle Feed Lockstitch Sewing Machine Head Only – For Medium to Heavy Weight Materials
The Juki DLN-5410NH is an industrial-grade, single-needle needle-feed lockstitch sewing machine head engineered for smooth, consistent performance on medium to heavy-weight fabrics. With advanced features that boost stitch quality and operator comfort, this machine is perfect for garment manufacturing, upholstery, leatherwork, and other demanding textile applications.
Key Features:
-
Needle Feed Mechanism: Ensures even fabric feeding with minimal puckering or slippage—even on thick, heavy materials.
-
Precision Stitching: Adjustable needle feed amount (±15%) and low-tension sewing adapt to changing fabric types and thicknesses, delivering beautiful, balanced seams every time.
-
Sturdy, Quiet Design: Optimally balanced machine head and reinforced frame structure dramatically reduce vibration and noise during operation for a smoother sewing experience.
-
Enhanced Durability: Reinforced feed, lubrication, and frame components, plus a hermetically sealed needle bar frame, ensure long-term reliability and reduced maintenance needs.
-
Energy-Efficient Control Box: The SC-920C control box and M92 compact servomotor introduce advanced energy-saving features, reducing standby power consumption by up to 25%.
-
Flexible Operation Panel: Compatible with both CP-18A and CP-180A operation panels for comprehensive production support and workflow management.
-
Operator Comfort: Light-pressure foot pedal and presser foot lift up to 13mm by knee allow for easy handling of bulky or layered materials.
-
Automatic Lubrication: Automatic full-rotary hook lubrication keeps moving parts running smoothly with minimal intervention.
Technical Specifications:
-
Model: Juki DLN-5410NH
-
Application: Medium to heavy-weight materials
-
Max Sewing Speed: 4,000 stitches per minute
-
Max Stitch Length: 4.5mm
-
Needle Bar Stroke: 30.7mm
-
Presser Foot Lift: By hand: 5.5mm | By knee: 13mm
-
Needle: DB×1 (#21), 134 (Nm130) for JE
-
Hook: Automatic-lubricating full-rotary hook
-
Lubrication: Automatic (JUKI New Defrix Oil No.1 / ISO VG7 equivalent)
