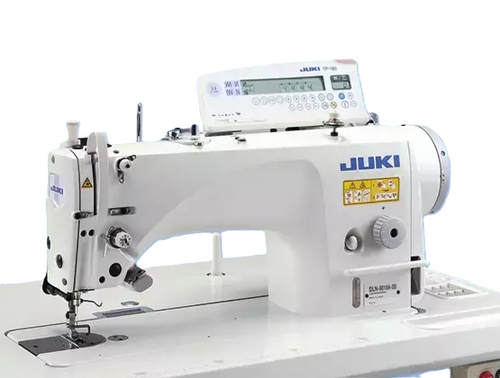

JUKI DLN-9010A-SS AUTOMATIC DIRECT DRIVE NEEDLE FEED LOCKSTITCH SEWING MACHINE HEAD

Juki DLN-9010A-SS Direct Drive Needle Feed Lockstitch Sewing Machine Head – Light to Medium Weight with Automatic Thread Trimmer

The Juki DLN-9010A-SS is a high-speed, direct-drive, single-needle needle feed lockstitch sewing machine head designed for precise, professional results on light to medium-weight fabrics. Featuring an integrated automatic thread trimmer, oil pan-less dry technology, and advanced ergonomic functions, this machine delivers outstanding performance and reliability in demanding production environments.

Key Features:

• Direct Drive System: The compact AC servomotor connects directly to the main shaft for maximum power, energy efficiency, and reduced vibration.

• Advanced Needle Feed Mechanism: Ensures even fabric feeding, eliminates slippage, and produces consistently beautiful seams, even on slippery or stretchy materials.

• Dry-Type Needle Feed: Requires no oil pan; only a minute quantity of lubricating oil is needed for the hook and needle bar, preventing oil stains and keeping the workspace clean.

• Quick Feed Conversion: Easily switch between needle feed and bottom feed mechanisms through a simple adjustment, offering maximum versatility for various garment applications.

• Automatic Thread Trimmer: High-speed, reliable trimming mechanism improves efficiency and saves time, with a moving knife for easy maintenance and rapid thread cutting.

• Micro-Lifter Technology: Standard micro-lifter gently floats the presser foot, ideal for elastic or delicate fabrics, reducing material slippage and preventing fabric damage.

• Built-In Bobbin Winder: The integrated bobbin winder with thread cutting knife and adjustable bobbin thread quantity ensures quick and convenient bobbin changes.

• Presser Foot Lift: Maximum presser foot lift of 15mm (by knee), providing extra clearance for thick or layered materials.

• Energy-Saving Control: Equipped with the SC-920A control box, the system offers an energy-saving mode that reduces standby power consumption by approximately 20%.

• User-Friendly Design: Maintenance is easy thanks to a tiltable head that doesn't require knee-lifter or cover removal, and a safety switch prevents accidental starts during maintenance.

• Flexible Operation Panels: Compatible with CP-18A and CP-180A panels, featuring production support functions for tracking and optimizing workflow.

• Automatic Reverse Feed: Built-in solenoid-type automatic reverse feed with a repositionable switch for operator convenience.

• Attachment Mounting Seat: Standard mounting seat for easy replacement of attachments, improving work efficiency and durability.

Technical Specifications:

• Model: Juki DLN-9010A-SS

• Application: Light to medium-weight materials

• Max Sewing Speed: 5,000 stitches per minute (sti/min)*

• Max Stitch Length: 4.5mm

• Needle Bar Stroke: 33mm

• Presser Foot Lift: By hand: 5.5mm | By knee: 15mm (max) | Auto: 10mm

• Needle: DB×1 (#11), #9~#18; For JE: 134 (Nm90) Nm65~Nm110

• Hook: Automatic-lubricating full-rotary hook

• Lubrication: Minute-quantity lubrication (JUKI New Defrix Oil No.1 / ISO VG7)

• Distance from Needle to Arm: 300mm

• Bed Size: 517mm × 178mm

• Built-In Bobbin Winder: Yes

• Micro-Lifter: Standard

• Power Requirement / Consumption: Single-phase 100120V, 200240V; 3-phase 200~240V / 310VA

• Total Weight: 83.5kg
  **Max speed is 4,000 sti/min if stitch length exceeds 3.5mm.
