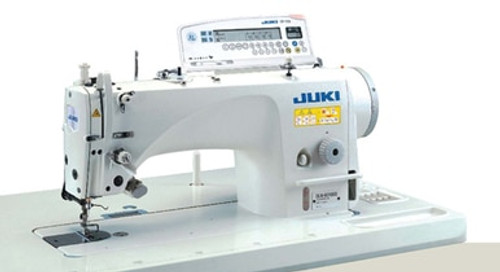

JUKI DLN-9010ASHWBAK118 DIRECT DRIVE NEEDLE FEED LOCKSTITCH HEAVY DUTY SEWING MACHINE

Juki DLN-9010A-SH-WBAK118 is a high-speed, direct-drive, 1-needle, needle-feed industrial lockstitch machine engineered for heavy-weight fabrics. Featuring an automatic thread trimmer, dry-type needle feed, and oil pan-less lubrication, it delivers clean, precise seams even on the most demanding materials.

Widely recognised for its exceptional feeding accuracy, the needle feed mechanism prevents fabric slippage and distortion, making it perfect for applications such as outerwear, workwear, leather goods, and heavy upholstery projects.

Key Features

• Heavy-Duty Needle Feed – Ensures perfect stitch length on thick and multi-layer fabrics.

• Dry-Type Feed Mechanism – Minimises oil leakage and garment staining.

• ±15% Adjustable Feed – Allows precise adaptation to different materials.

• Oil Pan-Less Design – Cleaner operation with targeted lubrication to hook and needle bar.

• Micro-Lifter System – Keeps presser foot slightly raised for sewing textured or layered materials without damage.

• Quick Change Feed Mode – Easily convert from needle feed to standard bottom feed with a simple adjustment.

• High Presser Foot Lift (15mm) – Ideal for bulky, padded, or layered workpieces.

• Built-In Bobbin Winder – Includes thread cutter and winding quantity control.

• Fast Auto Thread Trimmer – 1.5× faster than conventional systems with reliable timing.

• Compact AC Servo Motor – Direct-drive for reduced energy use and responsive control.

• Attachment-Mounting Seat – Increases durability and improves workflow when swapping attachments.

• Energy-Saving SC-920A Control Box – Cuts standby power consumption by approx. 20%.

• Customisable Operation Panels – Compatible with CP-18A or CP-180A for production tracking functions.

Technical Specifications

• Model: Juki DLN-9010A-SH

• Application: Heavy-weight materials

• Max Sewing Speed: 4,000 sti/min

• Max Stitch Length: 4.5mm

• Needle Bar Stroke: 33mm

• Presser Foot Lift:

  • By hand: 5.5mm

  • By knee: 15mm (max.)

  • Auto: 10mm

• Needle System: DB×1 (#21) / 134 (Nm130) – #20~#23 (Nm120~Nm160)

• Hook: Automatic-lubricating full-rotary hook

• Lubrication: Minute-quantity lubrication (needle bar & hook)

• Oil Type: JUKI New Defrix Oil No.1 (ISO VG7)

• Needle to Arm Distance: 300mm

• Bed Size: 517mm × 178mm

• Bobbin Winder: Built-in

• Micro-Lifter Screw: Standard

• Drive: Compact AC servo (direct-drive system)

• Reverse Feed: Automatic (built-in solenoid type)

• Power Requirement:

  • Single-phase: 100–120V / 200–240V

  • 3-phase: 200–240V

• Power Consumption: 310VA

• Weight: 83.5kg
