JUKI LH-3588AGF7WBAK135 TWIN NEEDLE LOCKTITCH NEEDLE KNOCK OUT

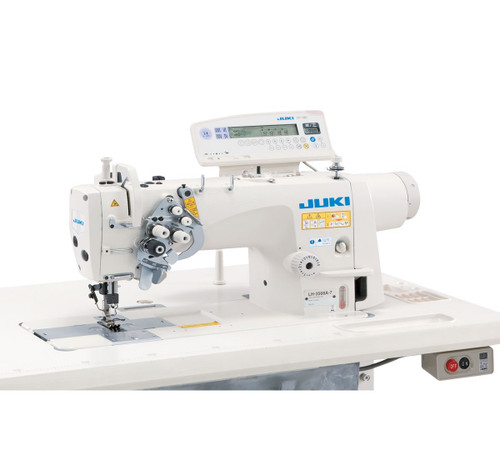

Juki LH-3588A-GF-7WB/AK135 – Heavy-Duty Twin Needle Lockstitch with Split Needle Bar

The Juki LH-3588A-GF-7WB/AK135 is a twin needle industrial lockstitch sewing machine designed for jeans and heavy-weight materials, featuring a 6.4mm split needle bar, semi-dry head, large capacity hooks, and automatic thread trimming (UBT). Part of the advanced LH-3500A Series, it offers superior penetration, reduced oil staining, and exceptional stitch consistency.

Key Features

• High-Torque Direct-Drive Motor
  500W motor increases penetration force by 32% for multi-layer heavy fabrics while reducing power consumption by 21%.

• Semi-Dry Head
  Prevents oil contamination of fabrics, ideal for high-value garments like denim and workwear.

• Large Capacity Hooks
  Hooks are 1.8× larger than standard, reducing bobbin changes and improving productivity.

• 6.4mm Split Needle Bar
  Allows independent needle operation for flexible seam control.

• Enhanced Thread Trimming
  Reliable trimmer cuts needle and bobbin threads cleanly, even on heavy threads, with improved bobbin retention.

• Micro-Lifter Presser Foot Adjustment
  Minimises drag on thick or elastic materials, preserving their texture.

• Flexible Oil Supply
  Choose between Eco-Oil circulation or Clean-Oil feed to suit your production needs.

• Production Support Functions (CP-18A / CP-180A)
  Built-in efficiency tools: output control, operation measurement, and bobbin counter.

Technical Specifications

• Model: Juki LH-3588A-GF-7WB/AK135

• Application: Jeans & heavy-weight fabrics

• Needle Gauge: 6.4mm

• Hook: Vertical axis, large capacity (1.8× standard)

• Max Sewing Speed: 3,000 sti/min

• Stitch Length: Max 5mm

• Needle Bar Stroke: 33.4mm

• Needle System: DP×5 (#21) #16–#23

• Presser Foot Lift: By hand: 7mm / By knee: 13mm

• Feed System: Needle feed

• Lubrication: Semi-dry head, minute-quantity hook lubrication

• Oil Options: Eco-Oil (circulation) or Clean Oil supply

• Tank Capacity: 280 cm³

• Weight: Machine head: 48kg (packaged)

• Lubricating Oil: JUKI New Defrix Oil No.1 (ISO VG7)
