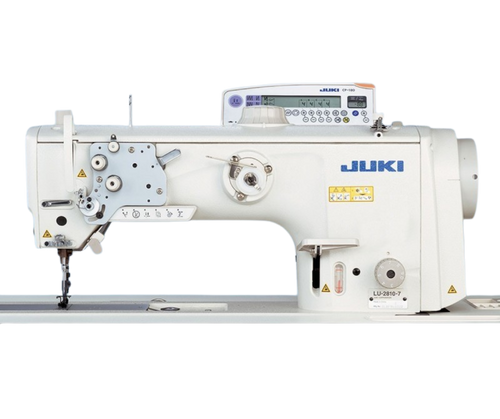

JUKI LU-2860ADS-70BBS – TWIN NEEDLE WALKING FOOT UNISON-FEED LOCKSTITCH MACHINE

Juki LU-2860ADS-70BBS is a semi-dry head, 2-needle unison-feed lockstitch machine engineered for heavy-duty applications. Featuring a vertical-axis 2.0 fold-capacity hook, high-torque direct-drive motor, and extra-long arm, this machine delivers exceptional stitch quality, improved handling, and maximum efficiency for professional sewing operations.

Key Features

• High & Semi-Long Arm – Spacious work area for large and bulky materials.

• Walking Foot & Presser Foot Synchronisation – Consistent stitch quality across different material thicknesses.

• Adjustable Alternating Vertical Movement – Up to 9mm, set quickly with the large top-mounted dial.

• High Presser Foot Lift – 20mm (auto lever) for sewing thick materials such as leather, upholstery foam, and multi-layer fabrics.

• Multi-Functional 6-String Switch – Easy changeover of stitch length and walking foot height.

• Double Needle Thread Tension – Ensures even tension for smooth seams on heavy materials.

• 2.0 Fold-Capacity Hook – Reduces bobbin changes and supports heavy thread without losing stitch quality.

• High-Torque Direct-Drive Motor – Increases penetration power and reduces power consumption by up to 37%.

• New Tank-Style Automatic Lubrication System – Clean, filtered oil for long-lasting performance and reduced maintenance.

Technical Specifications

• Model: Juki LU-2860ADS-70BBS

• Type: 2-needle walking foot lockstitch

• Max Sewing Speed: 2,700 sti/min

• Max Stitch Length: 9mm

• Presser Foot Lift: Auto: 20mm / Hand: 10mm

• Alternating Vertical Movement: 1–9mm (adjustable)

• Needle System: 135×17 Nm160 (Nm125–Nm180)

• Thread Range: #30–#5, B46–B138, Nm=60/3–20/3

• Hook: Vertical-axis 2.0 fold-capacity hook

• Lubrication: Semi-dry head, automatic tank system

• Weight: 61kg (machine head)
