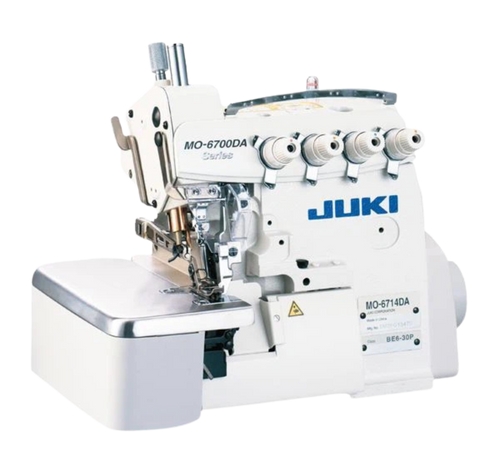

JUKI MO-6704DA-0E4-40H 3 THREAD OVERLOCK (DRY)

The Juki MO-6704DA-0E4-40H is a semi-dry head, 1-needle, 3-thread overlock machine engineered for medium to heavy-weight fabrics. Incorporating JUKI’s advanced dry-head technology, it prevents oil splashes in critical sewing areas, ensuring stain-free, professional-quality seams.

With an impressive sewing speed of up to 7,000 stitches per minute, it delivers high productivity without compromising stitch quality. The needle bar and upper looper mechanisms are completely lubrication-free, reducing maintenance and extending machine life.

Key Features

• Semi-Dry Head Technology – Eliminates oil contamination on garments, improving finished product quality.

• High-Speed Sewing – Up to 7,000 sti/min for faster output.

• Lubrication-Free Components – Needle bar and upper looper require no oil, enhancing durability.

• Upper Looper High-Throw Type – Ideal for handling thick seams and bulky materials.

• Easy Maintenance – Equipped with two grease filler points for quick servicing.

• Precise Differential Feed – Lever control with micro-adjustment for consistent stitching.

• Strong Overedging – 4.0mm overedging width for secure, professional seams.

Subclass Specification

• Model: Juki MO-6704DA-0E4-40H

• Material Range: Medium to heavy-weight fabrics

• Needles / Threads: 1 needle / 3 threads

• Overedging Width: 4.0mm

• Stitch Length: 0.8–4mm

• Differential Feed Ratio: Gathering 1:2 (Max 1:4) / Stretching 1:0.7 (Max 1:0.6)

• Needle System: DCx27 #11

• Needle Bar Stroke: 24.5mm

• Presser Foot Lift: 7mm

• Max Speed: 7,000 sti/min

• Lubrication: Automatic (semi-dry head – no lubrication required for needle bar & upper looper)

• Weight: 28kg (head only)
