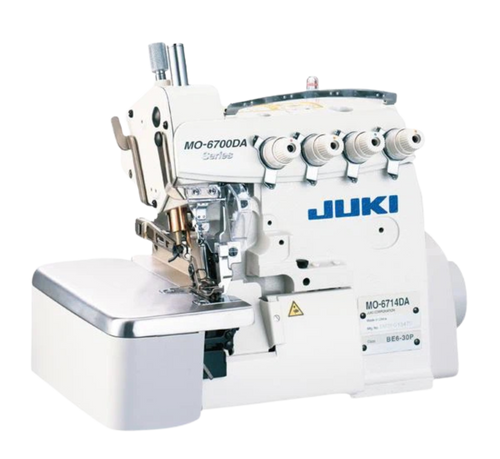

JUKI MO-6714DA-BE6-40H – 4-THREAD SEMI-DRY OVERLOCK INDUSTRIAL SEEWING MACHINE

The Juki MO-6714DA-BE6-40H is a semi-dry head, 2-needle, 4-thread overlock machine designed for medium to heavy-weight fabrics. Featuring JUKI’s advanced dry-head technology, it prevents oil contamination, ensuring clean, professional-quality seams even during high-speed operation.

Operating at speeds of up to 7,000 stitches per minute, this machine combines exceptional productivity with precision stitch formation. Its lubrication-free needle bar and upper looper mechanisms reduce maintenance needs and extend the life of the machine.

Key Features

• Semi-Dry Head Technology – Prevents oil stains on garments, improving product quality.

• High-Speed Performance – Up to 7,000 sti/min for maximum output.

• Lubrication-Free Components – Needle bar and upper looper require no oil, enhancing durability.

• 2-Needle / 4-Thread Operation – Ideal for strong, secure overlock seams.

• Upper Looper High-Throw Type – Handles bulky seams and heavy materials with ease.

• Easy Differential Feed Adjustment – Lever control with micro-adjustment for perfect stitch consistency.

• Multiple Overedging Widths – Supports 2.0, 3.2, 4.0, and 4.8mm seam finishes.

Subclass Specification

• Model: Juki MO-6714DA-BE6-40H

• Material Range: Medium to heavy-weight fabrics

• Needles / Threads: 2 needles / 4 threads

• Needle Gauge: 2.0mm

• Overedging Width: 4.0mm (adjustable to 2.0, 3.2, or 4.8mm)

• Stitch Length: 0.8–4mm

• Differential Feed Ratio: Gathering 1:2 (Max 1:4) / Stretching 1:0.7 (Max 1:0.6)

• Needle System: DCx27 #11

• Needle Bar Stroke: 24.5mm

• Presser Foot Lift: 7mm

• Max Speed: 7,000 sti/min

• Lubrication: Automatic (semi-dry head – no lubrication required for needle bar & upper looper)

• Weight: 28kg (head only)
