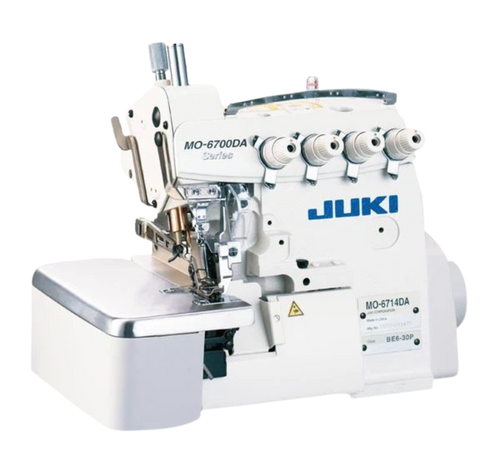

JUKI MO-6716DA-FF6-40H 5-THREAD DRY HEAD OVERLOCK INDUSTRIAL SEWING MACHINE

Juki MO-6716DA-FF6-40H – 5-Thread Semi-Dry Overlock / Safety Stitch Machine

The Juki MO-6716DA-FF6-40H is a semi-dry head, 2-needle, 5-thread overlock/safety stitch machine built for medium to heavy-weight fabrics. Featuring JUKI’s advanced dry-head technology, it prevents oil contamination, delivering clean, high-quality seams for heavy-duty garment production.

With a maximum speed of 7,000 stitches per minute, this model ensures exceptional productivity while maintaining stitch precision. The extra high-throw upper looper allows smooth handling of thicker materials and multiple layers, making it ideal for workwear, uniforms, and upholstery.

Key Features

• Semi-Dry Head Technology – Prevents oil stains and enhances seam quality.

• Extra High-Throw Upper Looper – Designed for bulky or layered fabrics.

• High-Speed Operation – Up to 7,000 sti/min for efficient production.

• 5-Thread Safety Stitch – Combines overlock and chain stitch for added seam strength.

• Lubrication-Free Needle Bar & Upper Looper – Minimises maintenance needs.

• Easy Differential Feed Control – Lever-operated with micro-adjustment for accurate stitch formation.

• Heavy-Duty Capability – Handles demanding sewing applications with ease.

Subclass Specification

• Model: Juki MO-6716DA-FF6-40H

• Material Range: Medium to heavy-weight fabrics

• Needles / Threads: 2 needles / 5 threads

• Needle Gauge: 4.8mm

• Overedging Width: 4.8mm (adjustable to 3.2, 4.0, 6.4mm)

• Stitch Length: 1.5–4mm

• Differential Feed Ratio: Gathering 1:2 (Max 1:4) / Stretching 1:0.7 (Max 1:0.6)

• Needle System: DCx27 #16

• Needle Bar Stroke: 24.5mm

• Presser Foot Lift: 7mm

• Max Speed: 7,000 sti/min

• Lubrication: Automatic (semi-dry head – no lubrication required for needle bar & upper looper)

• Weight: 28kg (head only)
