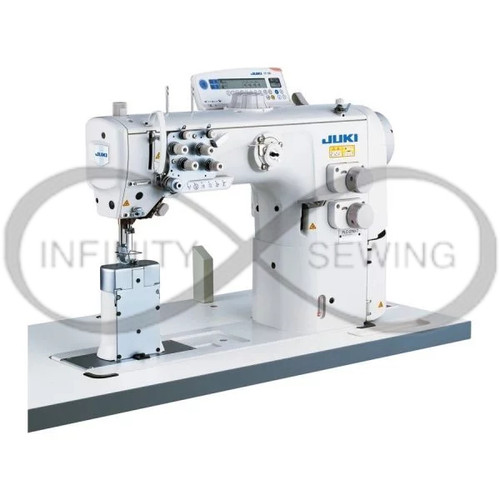

JUKI PLC-2760-7 10mm Twin Needle Direct Drive Post Bed Industrial Sewing Machine

Juki PLC-2760-7 (10mm Gauge Set)

Discover the precision and power of the Juki PLC-2760-7, a 2-needle post-bed sewing machine engineered for excellence in heavy-weight material applications such as car seats, sofas, and sports goods.

Advanced Sewing Performance: Experience superior stitching quality and reliability with adjustable features that enhance versatility and efficiency. The machine includes a standard automatic thread trimmer with a 2-pitch dial, allowing seamless transitions between various stitch lengths.

Enhanced Operational Features: Reduce noise and vibration during operation with strategically placed resin parts and a bevel gear hook mechanism. The high-torque direct-drive motor ensures responsive performance, penetrating even multi-layered fabrics effortlessly.

Precision Stitch Control: Maintain consistent stitch quality with the walking-foot and presser-foot alternating vertical movement mechanism, adjustable up to 9mm. The machine also features a high lift presser bar (up to 20mm) for easy handling of thick materials like leather and sponges.

Versatile Adjustability: Fine-tune your sewing experience with adjustable feed ratios, eccentric feed cam settings, and a new thread trimming mechanism that supports stable operation at maximum sewing lengths of up to 12mm.

User-Friendly Design: Enjoy intuitive control with a multi-functional 6-string switch and a large dial for easy adjustment of stitch length and foot movements. The machine's new lubrication system ensures consistent oil supply for impeccable seam quality at any speed.

Technical Specifications:

• Model Name: Juki PLC-2760-7 (10mm Gauge Set)
• Type: 2-needle with automatic thread trimmer (Direct-drive)
• Max. Sewing Speed: 2,500 stitches per minute
• Needle: 135×17
• Thread Range: TEX 50~167
• Max. Stitch Length: 12mm (forward/backward)
• Stitch Adjusting Method: 2-pitch dial
• Hook: Vertical-axis 2.0-fold capacity hook (latch type)
• Presser Foot Lift: By hand: 10mm, Auto: 20mm
• Alternating Vertical Movement: 1~9mm, Adjustable via dial
• Safety Mechanism: Provided as standard
• Bobbin Thread Winder: Built-in arm
• Lubrication: Automatic (Tank system)
• Distance from Needle to Machine Arm: 347mm
• Post Height: 170mm
• Power Requirement/Consumption: Single-phase 100~120V / 200~240V40V, 3-phase 200~240V / 193VA (with automatic thread trimmer)
• Air Consumption: 0.1dm³/min (ANR)
