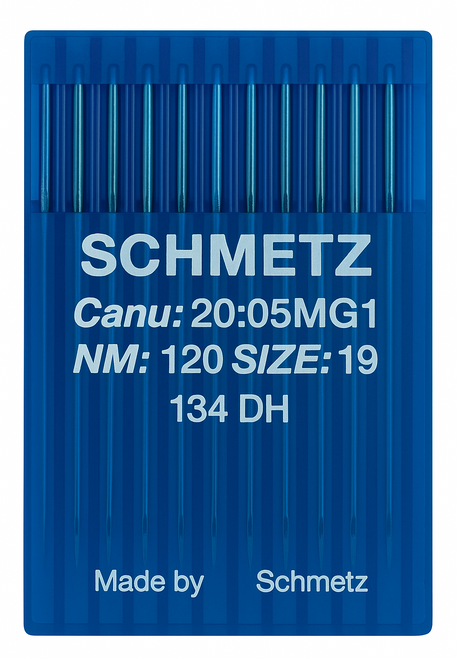

Schmetz 134 DH Size 120 Industrial Sewing Machine Needles – Pack of 10

Compatible with: 134 DH (CANU 20:05MG1)

The Schmetz 134 DH Size 120 industrial sewing needles feature a DH half triangular cutting point, which creates a smaller triangular incision compared to the standard D point. This delivers straight, precise seams while reducing material stress, making them ideal for very heavy materials such as thick leather, synthetics, coated fabrics, and upholstery. The chrome coating enhances durability and smooth penetration, ensuring reliable performance in industrial lockstitch machines.

Key Features:

• DH Half Triangular Point – Produces smaller triangular incisions for neat, straight seams.

• Designed for Very Heavy Materials – Suitable for thick leather, coated textiles, upholstery, and synthetics.

• Industrial Lockstitch System – Compatible with the 134 DH needle system.

• Durable Chrome Coating – Extends needle life and reduces friction under continuous use.

Needle Specifications:

• Needle System: 134 DH (CANU 20:05MG1)

• Needle Size: Size 120 (NM 120 / Size 19)

• Point Style: DH – Half Triangular Point (cutting)

• Shank Diameter: 2 mm

• Overall Length: 38.7 mm

• Length to Eye: 33.9 mm

• Shank: Round (no flattening)

• Blade Shape: Straight

• Grooves: Single groove

• Coating: Chrome

• Stitch Type: Lockstitch

Recommended Applications:

Perfect for very heavy-duty projects such as saddlery, footwear, upholstery, coated textiles, tarpaulin, and heavy synthetic fabrics. Provides strong, straight seams with minimal risk of fabric splitting.
