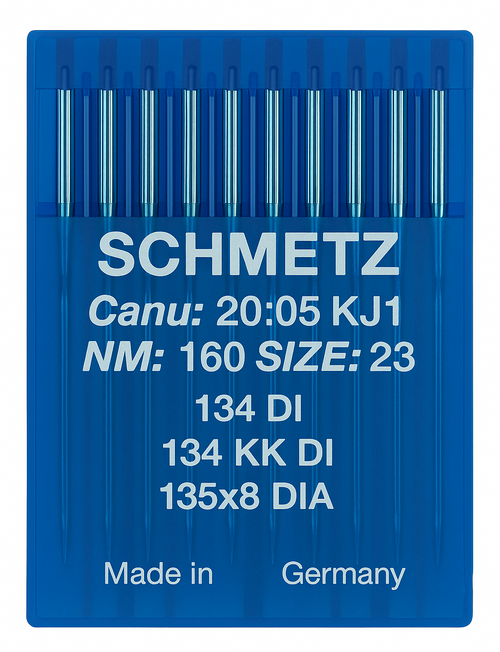

Schmetz 134 DI Size 160 Industrial Sewing Machine Needles – Pack of 10

Size 23 – Diamond Point – Pack of 10

Compatible with: 134 DI, 135X8 DIA, DPX8 (CANU 20:05KJ1)

The Schmetz 134 DI Size 160 industrial sewing needles feature a DI diamond cutting point, which produces a rhombic incision aligned with the seam direction. With four sharp cutting edges, the DI point penetrates very heavy and dense materials with ease, delivering a straight, recessed seam similar in appearance to the narrow cross point “S”. Finished with a chrome coating for durability, these needles are designed for industrial lockstitch machines handling extreme sewing conditions.

Key Features:

• DI Diamond Point – Creates rhombic incisions with four edges for strong, precise seams.

• Recessed, Professional Seams – Produces straight, durable seams in dense fabrics.

• For Extreme Materials – Perfect for saddlery, tarpaulin, coated textiles, upholstery, and heavy leather.

• Industrial Lockstitch System – Compatible with 134 DI, 135X8 DIA, and DPX8.

• Chrome Coating – Reduces friction, extends service life, and ensures smooth stitching.

Needle Specifications:

• Needle System: 134 DI / 135X8 DIA / DPX8 (CANU 20:05KJ1)

• Needle Size: Size 160 (NM 160 / Size 23)

• Point Style: DI – Diamond Point (cutting)

• Shank Diameter: 2 mm

• Overall Length: 38.7 mm

• Length to Eye: 33.9 mm

• Shank: Round (no flattening)

• Blade Shape: Straight

• Grooves: Single groove

• Coating: Chrome

• Stitch Type: Lockstitch

Recommended Applications:

Perfect for extra-heavy-duty sewing applications such as saddlery, harness making, tarpaulin, upholstery, coated textiles, footwear, and technical fabrics. Provides strong penetration and straight seams in the toughest materials.
