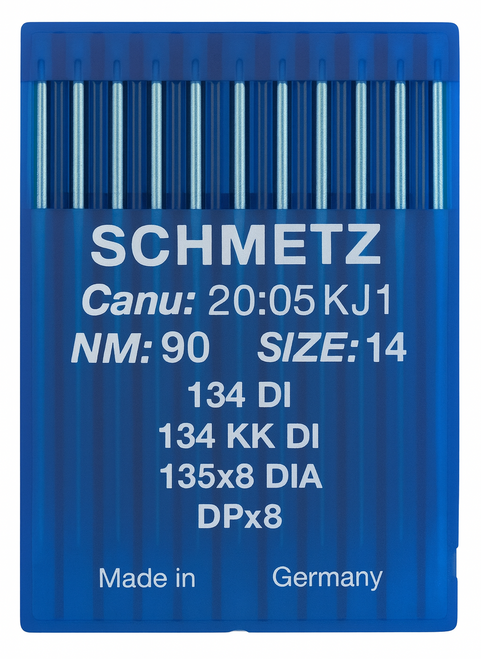

Schmetz 134 DI Size 90 Industrial Sewing Machine Needles – Pack of 10

Compatible with: 134 DI, 135X8 DIA, DPX8 (CANU 20:05KJ1)

The Schmetz 134 DI Size 90 industrial sewing needles feature a DI diamond cutting point, which creates a rhombic incision aligned with the seam direction. With four sharp cutting edges, the DI point penetrates heavy and hard materials more easily than standard points, producing a straight, recessed seam similar in appearance to an “S” cross point. Finished with a chrome coating for durability, these needles are designed for industrial lockstitch applications on demanding materials.

Key Features:

• DI Diamond Point – Produces rhombic incisions with four cutting edges for easier penetration in hard materials.

• Straight, Recessed Seams – Creates a strong seam appearance similar to the narrow cross point “S”.

• Ideal for Hard & Heavy Materials – Perfect for leather, coated fabrics, upholstery, and technical textiles.

• Industrial Lockstitch System – Compatible with 134 DI, 135X8 DIA, and DPX8 needle systems.

• Chrome Coated – Extends needle life, reduces wear, and ensures smoother stitching.

Needle Specifications:

• Needle System: 134 DI / 135X8 DIA / DPX8 (CANU 20:05KJ1)

• Needle Size: Size 90 (NM 90 / Size 14)

• Point Style: DI – Diamond Point (cutting)

• Shank Diameter: 2 mm

• Overall Length: 38.7 mm

• Length to Eye: 33.9 mm

• Shank: Round (no flattening)

• Blade Shape: Straight

• Grooves: Single groove

• Coating: Chrome

• Stitch Type: Lockstitch

Recommended Applications:

Ideal for heavy-duty sewing on tough materials such as leather, upholstery, coated textiles, technical fabrics, and synthetic composites. Provides strong, straight, and recessed seams for professional results.
