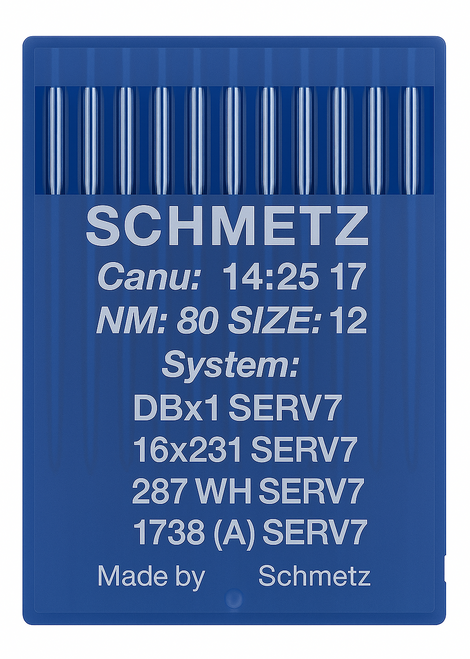

Schmetz 16X231 SERV 7 Size 80 Industrial Sewing Machine Needles – Pack of 10

Compatible with: DBX1 SERV 7, 16X231 SERV 7, 287 WH SERV 7, 1738(A) SERV 7 (CANU 14:25 17)

The Schmetz 16X231 SERV 7 Size 80 industrial sewing needles are designed to prevent skipped stitches and fabric damage, especially when working with elastic or stretch fabrics. Featuring a reinforced blade for extra stability and a hump scarf that creates a larger thread loop for reliable hook catching, these needles ensure consistent stitch quality and long-lasting performance.

Thanks to the unique SERV 7 design, users can often sew with a smaller needle size without sacrificing stability, producing smaller stitch holes and cleaner seams. These needles are especially stable, less likely to bend, and provide excellent protection for both fabric and machine parts.

Key Features:

• Special SERV 7 Design – 15–20% reinforced blade strength for reduced breakage.

• Hump Scarf – Enlarges thread loop for improved stitch formation and fewer skipped stitches.

• Ideal for Elastic & Stretch Fabrics – Specifically designed to overcome skipped stitches on stretchy materials.

• Durable Chrome Coating – Extends working life in continuous sewing.

• Industrial Lockstitch Compatibility – Suitable for multiple needle systems.

Needle Specifications:

• Needle System: DBX1 SERV 7 / 16X231 SERV 7 / 287 WH SERV 7 / 1738(A) SERV 7 (CANU 14:25 17)

• Needle Size: Size 80 (NM 80 / Size 12)

• Point Style: Standard (Normal round point)

• Special Variant: Reinforced blade & hump scarf for stability and fewer skipped stitches

• Shank Diameter: 1.62 mm

• Overall Length: 37.5 mm

• Length to Eye: 33.9 mm

• Shank: Round (no flattening)

• Blade Shape: Straight

• Grooves: Single groove

• Coating: Chrome

• Stitch Type: Lockstitch

Recommended Applications:

Perfect for light to medium-weight woven, elastic, and stretch fabrics, ensuring strong seams, reduced skipped stitches, and smooth sewing results in professional garment production.
