SW100 100mm Round Knife Cutter 220V

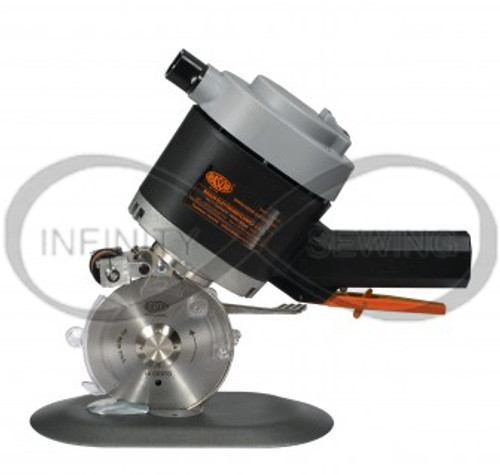

Rasor SW100 - 100mm Electric Bench Cutter

The Rasor SW100 has been a leading choice for over 40 years in the textile and technical fabric industries. Known for its efficiency and popularity, this bench cutting machine combines advanced technology with safety features, all while weighing only 3 kilograms for easy handling. The combination of the blade and counterblade ensures sharp, precise cuts without ragged edges. Equipped with a balanced and silenced 90W motor and high-resistance bronze/steel gear couplings, the SW100 offers lasting stability and performance. Its 6-edge, 100mm diameter knife can effortlessly cut through fabrics up to 35mm thick. The aluminum cutter base with Teflon®-coated rollers provides friction-free feeding for smooth operation. The push-button sharpening stone allows for quick knife edge sharpening in less than 10 seconds without removing the blade. With low maintenance and operating costs, the SW100 is the ideal cutting machine for a wide range of textile and technical fabric applications.

Description

The Rasor SW100 bench cutter is designed for cutting robust fabrics with precision. The blade and counterblade remain in constant contact, ensuring clear separation without fraying. This versatile and lightweight cutter excels in delivering precise cuts, thanks to its sliding bearing base and effective cutting system featuring a polygonal blade. It's perfect for curved profile cuts in the textile and tannage sectors, as well as various industrial applications, including polymers, thermoacoustic insulators, padding, neoprene, filters, synthetic fabrics, carpets, and automotive and marine interiors.

The 100mm blade diameter and lightweight design (3 kg) make this cutter ideal for small-radius cuts on materials up to 3.5 cm thick. Its wide sliding bearing base allows for effortless maneuverability across the work surface. The built-in sharpener enables quick blade maintenance without disassembly, ensuring continuous cutting performance.

Acoustic Level

The maximum sound pressure level emitted is approximately 60 dB (A), measured according to EN ISO 15744:2008 standards. Noise levels may vary slightly at different detection distances.

Technical Specifications

• Model: Rasor SW100
• Blade Diameter: 100 mm (4″), with hard metal counterblade
• Blade Description: 10EHSS, 6-edges, HSS steel
• Blade Speed: 850 RPM
• Cutting Capacity: Up to 35 mm (1.4″)
• Power: Single-phase, 90 W
• Max Absorption: 2 A with protection fuse
• Net Weight (with power cord): 2,950 g
• Total Weight (with packaging): 4,650 g
• Electric Cable Length: 1.5 m (without plug)
• Minimum Brightness for Operation: 200 LUX
• Vibrations at Startup: < 2.5 m/s²
• Temperature Range: 0 – 55°C
• Humidity Range: 10 – 95% (non-condensing)
