Global WF 1510 Walking Foot Needle Feed Series

WF 1510 SERIES

The product specifications for the WF 1510 series:

Machine speed: max 2500 spm

Oiling system: fully automatic

Feed type: drop feed, needle feed walking foot

Inner food adjustment: 2,5 – 6,5 mm by dial

Presser foot lift: by hand: max 9 mm, by knee: max 16 mm

Needle bar stroke: 36 mm

Needle type: 135x17, Nm125-Nm180

WF 1515
– Single needle walking foot machine with a 9 mm stitch length and alternating foot stroke adjustment by dial. The machine is equipped with large vertical axis hook.

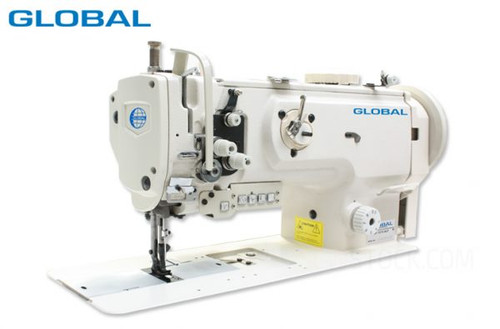

WF 1515 AUT
– Same as WF 1515, but with electric thread trimmer, pneumatic presser foot lifter, back tack and quick stroke adjustment.
WF 1515 L
– Same as above, but with a 5 – 12 mm stitch length.
WF 1515 AE
– Single needle walking foot machine specially designed for trimming and binding. Machine has a large hook and front knife cutting. Binder is not included. Stitch length 9 mm.
WF 1515 LG-B
– Single needle walking foot machine with large hook. Machine is most suitable for heavy binding work and has a movable binder. Stitch length 9 mm. Binder is not included.
WF 1516
– Double needle walking foot machine with 9 mm stitch length and manual quick stroke adjustment. Standard needle gauge 8 mm.
WF 1516 AUT
– Same as WF 1516, but with electric thread trimmer, pneumatic presser foot lifter, back tack and quick stroke adjustment.
