Global WF 920 Series

WALKING FOOT MACHINES

The product specifications for the WF 920 series:

Machine speed: max 2000 spm

Oiling system: fully automatic

Feed type: drop feed, needle feed, walking foot

Stitch length: max 9 mm

Presser foot lift: by hand max 8 mm, by knee max 15 mm

Presser foot lift: optional

Needle type: 135x17

Needle gauge (WF 926 types): standard 8 mm (other gauges available)

Safety clutch device: standard

WF 925
– Single needle, needle feed, walking foot machine with large vertical axis hook.
WF 925 AUT
– Same as WF 925, but with thread trimmer and automatic back tack (electric).
WF 926
– Double needle, needle feed, walking foot machine with large vertical axis hooks. Standard needle gauge 8 mm.
WF 926 AUT
– Same as WF 926, but with thread trimmer and automatic back tack (electric).

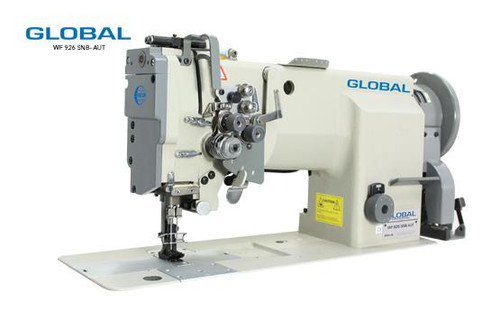

WF 926 SNB
– Same as WF 926, but with disengageable needle bars.
WF 926 SNB-AUT – Same as WF 926 SNB, but with electric thread trimmer and automatic back tack.

1 year back to base. Your warranty period starts from the date of your invoice and covers hardware failure, and includes the cost of parts and labour. ... A “back-to-base” warranty means that you will need to cover the cost of returning the goods to us for any reason.

Write a Review

0 Reviews Hide Reviews Show Reviews

Machine speed:: max 2000 spm
Oiling system:: fully automatic
Feed type:: drop feed, needle feed, walking foot
Stitch length:: max 9 mm
Presser foot lift:: by hand max 8 mm, by knee max 15 mm
Presser foot lift:: optional
Needle type:: 135x17
Needle gauge (WF 926 types):: standard 8 mm (other gauges available)
Safety clutch device:: standard
PRODUCTS:: ZZ 217, ZZ 217-3S, ZZ 217-3S P
TABLE TOP:: No Table Top, Table Top D 105x55x4 cm
STANDS:: No Stand, Stand C (China), Stand K (912 mm), Stand K short (667 mm), Stand Z
MOTOR SET:: DOL (chinese clutchmotor) 220 or 380 V, G 60 Servomotor (optional: synchroniser for G-series), NS clutchmotor 2800 RPM 220 V, NS clutchmotor 2800 RPM 380 V
OPTION:: External synchroniser G-series, No option, Thermical switch 220 V, Thermical switch 380 V
