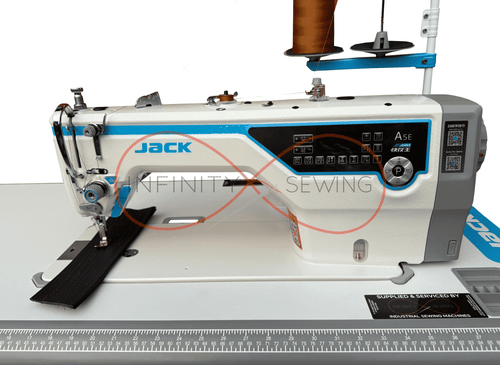

JACK A5E-AH-7 AMH Computerized Lockstitch Machine Electronic Stitch Length Control Industrial Sewing Machine

Jack A5E-AH-7 AMH Description

Overview
The Jack A5E-AH-7 AMH is a state-of-the-art single needle, direct drive, fully automatic drop feed lockstitch industrial sewing machine designed for high-performance sewing. Equipped with an advanced Artificial Intelligence chip, it features an Auto Tissue Adaptive System that detects fabric variations in real-time and communicates with a powerful motor, capable of piercing through 100 sheets of A4 paper thanks to its enhanced torque and power.

Artificial Intelligence Technology
This machine utilizes AI technology to monitor material changes instantly, analyzing 200,000 data patterns at a rate of 10,000 comparisons per second, ensuring optimal performance for every sewing task.

Ultra Powerful Motor
With a remarkable 15% increase in power, the motor achieves 8.4Nm of torque, enabling the sewing of heavier materials without thread breakage and lighter fabrics without puckering, resulting in flawless finishes.

Advanced Digital Control Panel
The fully digital interface includes features such as an automatic thread trimmer, silent bartack, presser foot lifter, adjustable stitch length, voice guidance, and ornamental pattern options, streamlining your sewing experience.

Adaptive Fabric System (AMH)
The AMH system automatically adjusts to handle heavy, light, and elastic fabrics without requiring manual changes, making it versatile for various projects.

Exceptional Punching Power
The ultra-powerful motor can effortlessly penetrate up to 10 layers of denim and over 100 sheets of A4 paper, providing unmatched sewing capabilities.

Digital Presser Foot Lifter
Controlled by a stepper motor, the presser foot can be adjusted to 13 different heights with just one click, offering precise control for various sewing applications.

Sealed Oil Pan Design
The sealed oil pan prevents dust and oil spills, maintaining cleanliness and ensuring optimal lubrication for long-lasting performance.

Spacious Working Area
With a generous 305mm operating space, the machine accommodates large projects such as quilts, quilted jackets, and more, facilitating easy material handling.

Technical Specifications

• Model: Jack A5E-AH-7 AMH
• Needle System: DB×1 (11-18#)
• Applications: Ideal for small orders and quick reorders of various fabrics
• Material Use: Heavy, Light, Elastic
• Maximum Stitch Length: 5mm
• Presser Foot Height: Adjustable from 1mm to 13mm
• Operating Space: 305mm x 130mm (12" x 5")
• Maximum Speed: 5000 Stitches Per Minute (SPM/RPM)
• Shipping Dimensions: 690mm x 295mm x 550mm (27" x 12" x 22")
• Weight: Net 41KG / Gross 47KG (91LBS / 104LBS)
