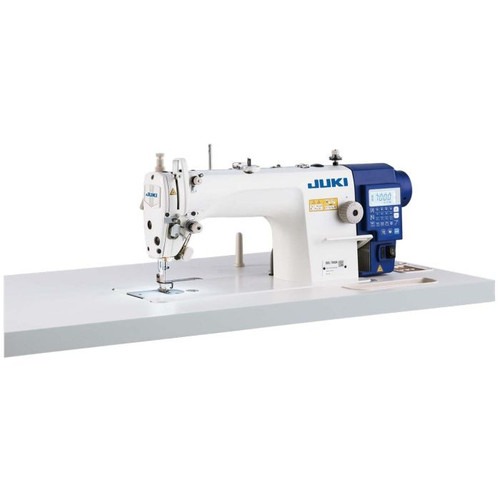

Juki DDL-7000AH-7 Lockstitch (UBT) Heavy Weight
1-needle, Direct-drive, Industrial Lockstitch Sewing Machine with Automatic Thread Trimmer for Heavy-Weight Materials
Energy-saving servomotor is installed in the direct-drive style.
The energy-saving and highly efficient servomotor is installed in the direct-drive style to transmit power without loss to the sewing machine, thereby providing improved responsiveness, quicker start-up and increased needle penetration force.
The compact-sized control box and operation panel.
Both the compact-sized control box and the operation panel are integrated with the machine head. The machine is provided as standard with the operation panel.
The operation panel is equipped box with ease with many different functions.
The power switch is built into the control box, making it easy to install the machine. Connection to the external output terminal is also very easy. The USB port is located below the control panel.
Responsiveness to the material is improved to sew many different types of materials.
The thread take-up lever which provides a wider sewing range is adopted.
Provided as standard with LED lighting.
Since the LED lights cast their light exactly downward to illuminate the needle entry area from the right and left sides of the needle bar, sewing work can be carried out more easily as compared with the use of light from one direction. In addition, the illuminance of the LED lights can be adjusted in five steps and can be used as an auxiliary light for work.
Highly-functional touch-back switch.
JUKI's sewing machine which is provided with a thread trimmer is also provided as standard with the renowned needle breakage preventing function. The main shaft angle control works to prevent needle breakage even when the touch-back switch is used to perform reverse feed stitching. The height of the touch-back switch is adjustable according to the items to be sewn.
- Model name:
- Juki DDL-7000AH-7
- Heavy weight
- Max. sewing speed:
- 4,000 sti/min*
- Max. stitch length:
- Lift of the presser foot:
- By hand: 5.5mm By knee: 13mm
- Lubricating oil:
- JUKI MACHINE OIL 7 (equivalent to ISO VG7)
- DP × 5 (#21) #20～#23
- Power consumpｔion:
- Weight of machine head/th>:
- 833 × 278 × 459
- Weight of machine head:
- 34kg (include motor, control box, cover)
