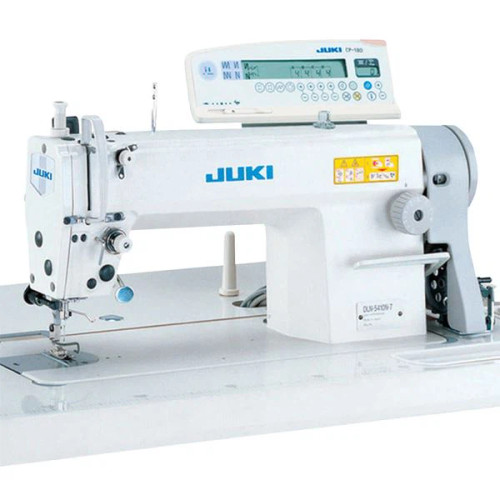

JUKI DLM-5400N-7 LOCKSTITCH VERTICAL EDGE TRIMMER UBT SEWING MACHINE
CONTACT US FOR A QUOTE
- Brand
- Juki
- SKU:
- DLM-5400N-7
- Condition:
- New
Juki DLM-5400N-7 – 1-Needle Lockstitch with Vertical Edge Trimmer & Automatic Thread Trimmer
The Juki DLM-5400N-7 is a 1-needle, bottom-feed, high-speed lockstitch machine equipped with a vertical edge trimmer and automatic thread trimmer (UBT). Designed for professional garment production, this machine stitches and trims fabric edges in a single operation—boosting productivity and ensuring consistently clean, precise seams.
Its sharp, adjustable knife can cut through a wide variety of materials, including heavy fabrics, elastic materials, and brushed fabrics, while maintaining stitch quality at speeds up to 4,500 stitches per minute.
Key Features
-
Bottom-Feed Lockstitch – Reliable, high-quality stitching for a variety of sewing applications.
-
Vertical Edge Trimmer – Trims fabric edges during sewing, reducing finishing time.
-
High-Speed Operation – Up to 4,500 stitches per minute for increased productivity.
-
Sharp, Versatile Knife – Cuts through light to heavy materials, elastic, and brushed fabrics.
-
One-Touch Knife Lever – Rust-resistant and easy to operate.
-
Adjustable Knife Position – Moves up to 5.5mm toward the operator for precise trimming.
-
Automatic Thread Trimmer – Handles a wide range of thread thicknesses, including heavy-duty.
-
Automatic Reverse Feed – Standard feature for improved efficiency.
-
Optional Operation Panels – Compatible with CP-18A and CP-180A, with production support functions.
-
Automatic Lubrication – Maintains consistent performance with minimal maintenance.
Technical Specifications
-
Model: Juki DLM-5400N-7
-
Max Sewing Speed: 4,500 sti/min*
-
Feed System: Bottom-feed
-
Max Stitch Length: 4mm (normal/reverse feed)
-
Needle Bar Stroke: 30.7mm
-
Presser Foot Lift:
-
By hand: 5.5mm
-
By knee: 10mm
-
-
Needle System: DB×1 (#14) #9–#18 / 134 (Nm90)
-
Hook: Automatic-lubricating full-rotary hook
-
Max Cutting Thickness: 4mm
-
Lubrication: Automatic
-
Oil Type: JUKI New Defrix Oil No.1 (ISO VG7)
-
Automatic Reverse Feed: Standard
-
Power Requirement: Single-phase 100
120V / 200240V, 3-phase 200~240V -
Power Consumption: 650VA
-
Total Weight: 83kg
