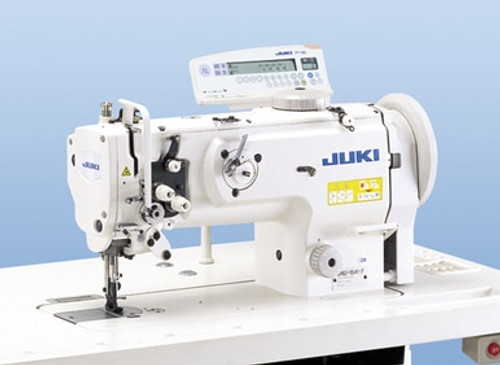

Juki DNU-1541/X55245 Walking Foot Needle Feed for Thick Thread

With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness.
The machine's rectangular feeding motion promises the consistent feeding of materials of all thicknesses without stitch gathering.

High-speed performance increases productivity.

The machine delivers increased productivity at sewingspeeds as high as 2,500sti/min (DNU-1541, -1541S) or 3,000sti/min (DNU-1541-7).

Excellent sewing capabilities and feed performance.

With its larger needlebar stroke, higher presser foot lift, and newly adopted double-tension mechanism, the machine offers excellent sewing capabilities and responsiveness.

Safety mechanism.
(DNU-1541S)

When the thread is caught in the hook or any other sewing trouble occurs, the safety mechanism will automatically operate to prevent the machine from being damaged.

The vertical stroke of the walking foot and presser foot can be easily set and changed.

The vertical stroke of the presser foot and walking foot (amount of alternating vertical movement) can be easily changed with the large dial mounted on the top of the machine head.
The sewing speed is automatically regulated based on the vertical stroke setting.
This ensures ideal sewing conditions at all times.

Thread trimming
without fail.

Consisting only of a moving knife and counter knife, the simple and well-balanced thread trimming mechanism is capable of cutting thick thread up to without fail.

A helpful automatic reverse feed function is provided as standard.

With just a light press on the one-touch type reverse feed button, reverse feed stitching is actuated. Furthermore, if a suspended ruler is attached on the machine or a 3-dimensional sewing product is sewn, the button can be shifted upward to prevent interruption.

The area around the needle entry is designed to be easilyobserved.

Since the needle thread tension-release solenoid is fitted on the rear face of the machine head, the area around the needle entry and one-touch type reverse feed button is easily viewable.
This substantially contributes to improved operability.
