JUKI LH-3588A-7 TWIN NEEDLE LOCKSTITCH (UBT) – SEMI-DRY HEAD WITH SPLIT NEEDLE BAR

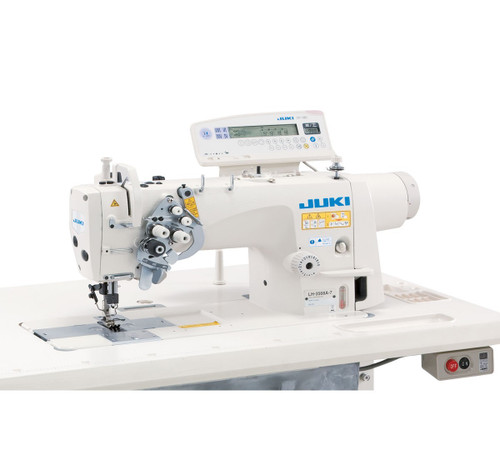

Juki LH-3588A-7 Twin Needle Semi-Dry Lockstitch Machine with Large Hooks & Automatic Thread Trimmer

The Juki LH-3588A-7 is a next-generation, twin-needle industrial lockstitch sewing machine for medium-weight fabrics, equipped with a semi-dry head, split needle bar, large capacity hooks, and automatic thread trimming (UBT). Designed for high productivity, it combines advanced mechanisms with superior stitch quality and energy efficiency.

Key Features

• Direct-Drive Motor with Energy Savings
  Integrated 500W high-torque motor improves penetration on thick seams and reduces power consumption by up to 21%.

• Semi-Dry Head
  Eliminates oil stains on fabric by preventing oil from reaching the needle bar area.

• Large Capacity Hooks
  1.8x larger than standard hooks, reducing bobbin changes and downtime.

• Split Needle Bar
  Enables independent needle operation for flexible stitching.

• Improved Thread Trimming System
  Trims both needle and bobbin threads cleanly, even with thick thread, and retains bobbin thread for faster restarts.

• Material-Friendly Micro-Lifter
  Fine-tune presser foot height to reduce drag and preserve fabric texture when working with delicate or elastic materials.

• Advanced Oil Supply Options
  Choose between Eco-Oil circulation or Clean-Oil supply for optimal lubrication and reduced oil usage.

• Production Support Panel (CP-18A / CP-180A)
  Built-in output control, operation tracking, and bobbin counter functions to monitor efficiency.

Technical Specifications

• Model: Juki LH-3588A-7

• Application: Medium-weight materials

• Hook: Vertical axis, large capacity (1.8× standard)

• Lubrication: Semi-dry head, minute-quantity hook lubrication

• Max Sewing Speed: 3,000 sti/min

• Stitch Length: Max 5mm

• Needle Bar Stroke: 33.4mm

• Needle System: DP×5 (#21) #16–#23

• Presser Foot Lift: By hand: 7mm / By knee: 13mm

• Feed System: Needle feed

• Oiling Methods: Eco-oil (circulation) or Clean oil

• Tank Capacity: 280 cm³

• Weight: Machine head: 48kg (packaged)

• Lubricating Oil: JUKI New Defrix Oil No.1 (ISO VG7)
