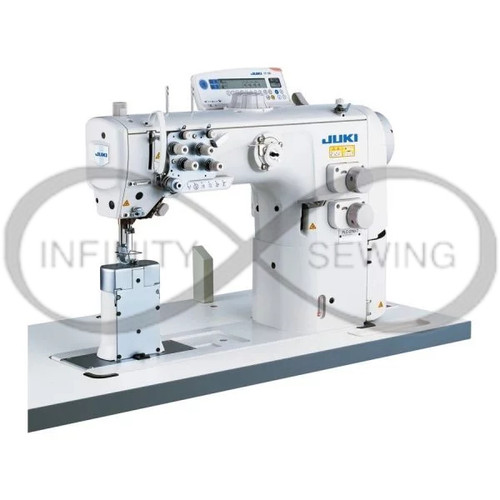

JUKI PLC-2765-SDAB/BT/DL Knock Out Needle Post Bed Industrial Sewing Machine

Juki PLC-2765-SDAB/BT/DL 2-Needle Split Needlebar Post-bed Sewing Machine

The Juki PLC-2765-SDAB/BT/DL is a specialized 2-needle split needlebar type post-bed sewing machine, designed for precision stitching in heavy-weight materials like car seats, sofas, and sports equipment.

Key Features:

• Organized Split Needlebars: This machine ensures well-balanced topstitch seams, particularly at material corners, thanks to its innovative organized split needlebars.

• Enhanced Workability: With an extended distance from the machine arm to the needle, the PLC-2765-SDAB/BT/DL improves maneuverability and operational efficiency.

• Versatile Stitching Capabilities: It offers adjustable stitch lengths through a standard 2-pitch dial, accommodating various sewing needs with ease.

• Noise and Vibration Reduction: Incorporating resin parts and a bevel gear for the hook, this machine minimizes noise and vibration during operation.

• High-Torque Direct-Drive Motor: Equipped with a high-torque direct-drive motor, it ensures exceptional responsiveness and penetration, ideal for multi-layered fabric applications.

• Walking-Foot / Presser-Foot Alternating Vertical Movement Mechanism: Maintains stitch consistency by adjusting the ratio of vertical movements between the walking foot and presser foot, up to 9mm.

• Adjustable Presser Bar Height: Achieve a presser bar height of up to 18mm automatically, facilitating easy handling of materials like leather and heavy-weight sponges.

• Customizable Feed Mechanism: Adjust the eccentricity of the feed driving cam for optimal stitching performance with different materials and threads.

• Dual-Tension Thread Tension System: Supports sewing with low-count threads under higher tension, enhancing stitch quality and durability.

• Automatic Thread Trimmer: Stable thread trimming even at maximum 12mm sewing lengths, enhancing efficiency.

Technical Specifications:

• Model: Juki PLC-2765-SDAB/BT/DL
• Type: 2-needle organized split needlebars type (V-belt type)
• Max. Sewing Speed: 2,500 stitches per minute
• Needle: 135×17
• Thread: TEX 50~167
• Max. Stitch Length: 12mm (forward / backward)
• Stitch Adjusting Method: 1 pitch dial
• Automatic Reverse Feed Function: Lever type
• Hook: Vertical-axis 2.0-fold capacity hook (latch type)
• Presser Foot Lift: By hand: 10mm, Auto: 18mm
• Alternating Vertical Movement: 1~9mm
• DL Device: Provided as standard
• Safety Mechanism: Provided as standard
• Bobbin Thread Winder: Built-in machine arm
• Bottom-Feed Micro-Adjustment Mechanism: Provided as standard
• Lubrication: Automatic (Tank system)
• Distance from Needle to Machine Arm: 347mm
• Post Height: 170mm
• Knee-Lifter: Provided as standard
• Auto-Lifter: Option
• Weight of Machine Head: 80kg
• Power Requirement / Consumption: Single-phase 100~120V / 200~220V, 3-phase 200~240V / 193VA (with automatic thread trimmer)
• Air Consumption: 0.1dm³/min (ANR)
