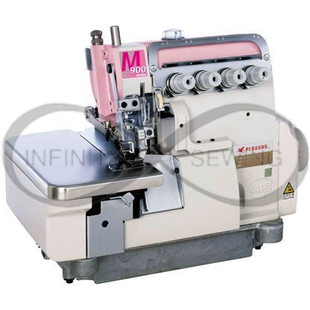

PEGASUS EXT3216H-A05/535K-5X5/Z054/PT 5-Thread Top Feed Overlock Industrial Sewing Machine

Pegasus EXT3216H-A05/535K-5X5/Z054/PT 5-Thread, Variable Top Feed Overlocker

The Pegasus EXT3216H-A05/535K-5X5/Z054/PT is a highly efficient 5-thread overlocker with variable top feed, designed to ensure high-quality production by preventing fabric twisting and ply-shifting. This machine excels at performing operations like shirring, piping, and blindstitch hemming, which are difficult to achieve with bottom feeding alone, and it effectively prevents puckering.

Key Features:

High-Quality Fabric Handling:

• The variable top feed system feeds both the top and bottom plies, preventing twisting and ply-shifting. This enhances the visual and textural characteristics of the fabric without altering its original properties.

Efficient Performance:

• Independently driven top and bottom feed dogs allow for large differential feed ratios, increasing feeding efficiency and ensuring neat shirring and piping operations.

Puckering Prevention:

• The top feed dog's path is regulated to prevent wrinkles on the fabric, even with increased feeding distances, thereby eliminating puckering.

Versatile Stitching:

• The adjustable up-and-down stroke of the top feed dog accommodates different fabric types and operations, from strong strokes for heavy fabrics to gentle strokes for light fabrics, ensuring beautiful finished products with balloon stitches.

Technical Specifications:

• Model: Pegasus EXT3216H-A05/535K-5X5/Z054/PT
• Fabric Weight: Extra Heavy
• Max Machine Speed: 5,500 sti/min
• Number of Needles: 2
• Number of Threads: 5
• Needle Space: 5 mm
• Overedge Width: 5, 6, 7 mm
• Top Feed Dog Front-to-Back Movement: 1-7 mm
• Top Feed Dog Up-to-Down Movement: 6.5 mm
• Stitch Length Adjustment: Push-button
• Differential Feed Ratio Adjustment: Lever with micro-adjustment
• Lubrication: Fully-automatic
