SCHMETZ 134-35 SERV 7/2134-35 SERV 7/DPX35 SERV 7 SIZE 90/14 INDUSTRIAL SEWING MACHINE NEEDLES

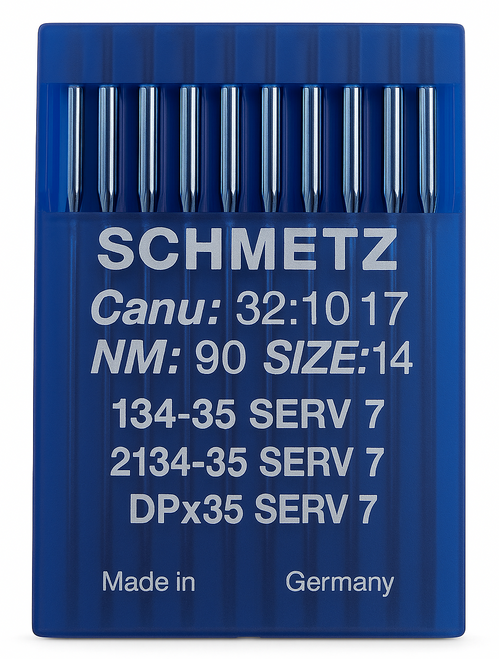

Schmetz 134-35 SERV 7 Size 90 (NM 90 / Size 14) Industrial Sewing Machine Needles – Pack of 10

Eliminate skipped stitches and boost performance with this pack of 10 Schmetz 134-35 SERV 7 needles, also known as 2134-35 SERV 7 or DPx35 SERV 7. These advanced industrial sewing machine needles are designed for high-speed production environments and provide exceptional stitch reliability, even on elastic or challenging materials.

SERV 7 Technology – Reinforced Design for Stability

The Schmetz SERV 7 needle is specially engineered to prevent skipped stitches and reduce needle bending during fast sewing. It features a unique hump scarf that creates a larger thread loop, making it easier for the hook to catch the thread — drastically reducing missed stitches.
Its reinforced blade increases stability by up to 15–20%, allowing for a smaller needle size without sacrificing strength or stitch quality.

This design also minimises wear on hooks, loopers, and throat plates, improving machine longevity and stitch precision.

Standard Point – Normal Round Point

The standard round point (normal conical point) is ideal for woven fabrics and general-purpose sewing. It delivers:

• Straight, clean stitch lines

• Smooth penetration with minimal fabric damage

• Consistent stitch formation across various materials

Key Benefits

• Prevents skipped stitches on elastic and stretch materials

• Reinforced for up to 20% greater needle stability

• Reduces needle bending and machine wear

• Enables smaller needle use without loss of durability

Perfect for industrial lockstitch sewing machines used in garment manufacturing, upholstery, technical textiles, and elastic materials.

Technical Specifications

• Needle System / Designation: 134-35 SERV 7 / 2134-35 SERV 7 / DPx35 SERV 7

• CANU Code: 32:10 17

• Size: NM 90 / Size 14

• Point Style: Standard (Normal round point)

• Special Variant: Reinforced blade and hump scarf to prevent skipped stitches

• Coating: Chrome-plated for heat resistance and extended life

• Shank Diameter: 2.00 mm

• Overall Length: 42.9 mm

• Length to Eye: 38.1 mm

• Shank Flattening: Without flat

• Blade Shape: Straight

• Number of Grooves: 1

• Stitch Type: Lockstitch

Why Choose Schmetz Industrial Needles?

• Precision-made for industrial lockstitch machines

• Reduces skipped stitches, bending, and breakage

• Trusted worldwide for reliability, accuracy, and superior seam quality

Supplied in a pack of 10 chrome-coated needles, perfect for professional and high-speed industrial sewing applications.
