JUKI DDL-8100EH HEAVY-DUTY INDUSTRIAL LOCKSTITCH SEWING MACHINE HEAD ONLY FOR HEAVYWEIGHT FABRICS

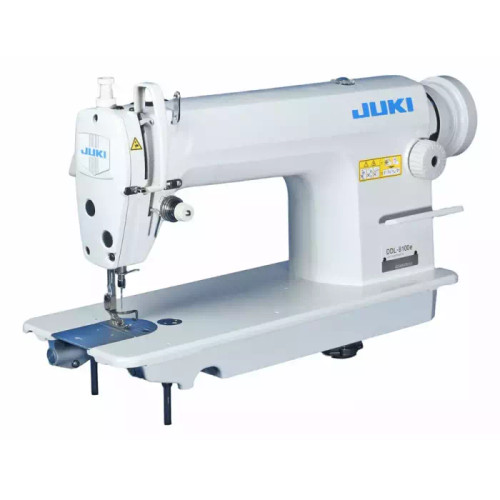

Juki DDL-8100EH Heavy-Duty Lockstitch Sewing Machine Head Only – Built for Heavy Fabrics

The Juki DDL-8100EH is a professional-grade industrial lockstitch sewing machine head engineered for heavy-weight fabrics and demanding production environments. If you’re looking for consistent, high-quality seams on thick materials, this machine head offers the power and precision you need for commercial tailoring, upholstery, and garment manufacturing.

Why Choose the Juki DDL-8100EH?

• Exceptional Stitch Quality: The advanced sewing mechanism provides smooth, low-tension operation, producing beautiful, uniform stitches across a variety of heavy fabrics like denim, canvas, and leather.

• Reduced Vibration & Noise: The optimized frame is built for strength and balance, resulting in stable sewing with less vibration and lower noise levels—even during extended use.

• High Presser Foot Lift: Tackle bulky seams and layered materials easily with a presser foot lift up to 13mm by knee and 5.5mm by hand.

• User-Friendly Controls: A light-touch stitch dial and an ergonomically designed, deep-recess hand pulley make adjustments fast and simple, improving productivity and operator comfort.

• Attachment-Ready: Standard attachment mounting seats allow you to add accessories or auxiliary parts, making this head adaptable to your future needs.

• Improved Workflow: The special hinge position prevents fabric from catching, streamlining your sewing process and protecting your materials.

Technical Specifications:

• Model: Juki DDL-8100EH

• Application: Heavyweight fabrics (industrial use)

• Maximum Sewing Speed: 4,000 stitches per minute

• Maximum Stitch Length: 5mm

• Needle Bar Stroke: 35mm

• Presser Foot Lift: 5.5mm by hand / 13mm by knee

• Needle System: DB×1 (#21), compatible with #20–#23

• Feed Dog: 3-flex gap-4

• Hook: Automatic-lubricating full-rotary hook

• Lubrication: Automatic (JUKI Machine Oil No. 7 or ISO VG7 equivalent)

• Weight (Head Only): 26kg
