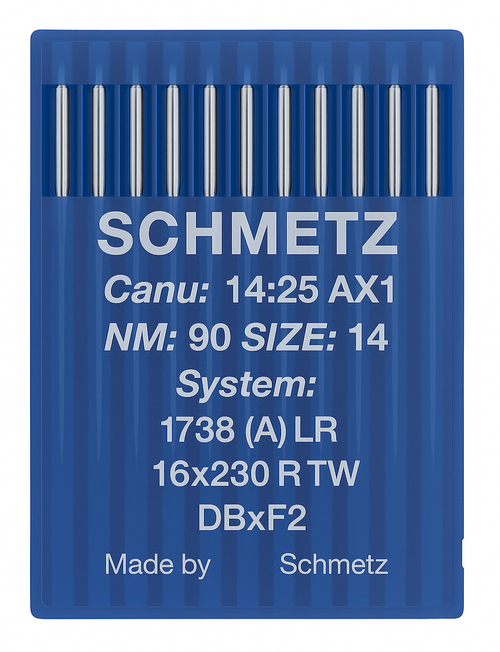

Schmetz 16X230 NRTW Size 90 Industrial Sewing Machine Needles – Pack of 10

Compatible with: 1738(A) LR, 16X230 R TW, DBXF2 (CANU 14:25AX1)

The Schmetz 16X230 NRTW Size 90 industrial sewing needles are engineered with an LR reverse twist point, making them ideal for leather and other heavy materials. This specialised cutting tip forms a lenticular incision at a 45° angle to the seam direction, producing a decorative seam that slants slightly to the left.

Strong, durable, and designed for precision, these needles are a reliable choice for leather goods manufacturing, upholstery, and decorative stitching where seam strength and appearance are equally important.

Key Features:

• LR Reverse Twist Point – Creates angled decorative seams with a 45° cut.

• Perfect for Leather & Upholstery – Designed for strong stitching on tough materials.

• Decorative & Functional – Produces seams with strength and an attractive finish.

• Chrome Finish – Enhances durability and performance under demanding use.

• Industrial Lockstitch Compatible – Works with machines using 1738(A) LR, 16X230 R TW, and DBXF2 needle systems.

Needle Specifications:

• Needle System: 1738(A) LR / 16X230 R TW / DBXF2 (CANU 14:25AX1)

• Needle Size: Size 90 (NM 90 / Size 14)

• Point Style: LR – Leather / Reverse twist point

• Shank Diameter: 1.62 mm

• Overall Length: 38.3 mm

• Length to Eye: 33.9 mm

• Shank: Round (no flattening)

• Blade Shape: Straight

• Grooves: Single groove

• Coating: Chrome

• Stitch Type: Lockstitch

Recommended Applications:

Ideal for medium to heavy leatherwork, belts, upholstery, saddlery, and footwear, where strong seams and decorative angled stitching are required.
